HCPL0701 - onsemi

Description: VDE 0884 recognized (file #136616); ; Superior CTR-2000%; Low current - 0.5 mA; Superior CMR-10 kV/µs; CTR guaranteed 0-70°C; U.L. recognized (file# E90700)

Download HCPL0701 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

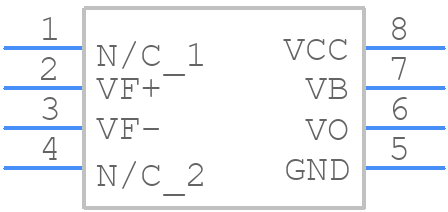

Symbol
HCPL0701 - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL0701 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom
3D Models
HCPL0701 - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom

HCPL0701 Details

  • Manufacturer Part Number:

    HCPL0701

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    400%

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.75 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00009 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL0701 Frequently Asked Questions (FAQs)

  • A good PCB layout practice for HCPL-0701 is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the input and output traces to reduce EMI.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within the recommended temperature range, use a heat sink if necessary, and follow proper soldering and assembly techniques to prevent thermal stress.
  • The maximum allowable voltage that can be applied to the input pins of HCPL-0701 is 1.5V, exceeding which may cause damage to the device.
  • Yes, HCPL-0701 can be used in high-frequency applications up to 10 MHz, but the device's performance may degrade at higher frequencies due to internal capacitance and inductance.
  • To troubleshoot issues with HCPL-0701, check the input voltage levels, ensure proper power supply decoupling, verify the output load is within the recommended range, and check for any electrical noise or interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL0701 Overview

Use the download button to access the HCPL0701 schematic symbol, PCB footprint, and 3D model.
