A good PCB layout for HCPL-0731 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting a suitable package type, such as the DIP or SOIC, can help improve reliability.
Common failure modes of HCPL-0731 include input overvoltage, output short circuits, and excessive temperature. To mitigate these, ensure proper input voltage clamping, use output short-circuit protection, and implement thermal monitoring and shutdown mechanisms.
Yes, HCPL-0731 can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. To achieve optimal performance, ensure proper PCB layout, minimize parasitic capacitance, and consider using a transmission line topology.
To ensure EMC when using HCPL-0731, follow proper PCB layout guidelines, use shielding and filtering, and consider using a common-mode choke or ferrite bead to reduce electromagnetic interference (EMI).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL0731 Overview

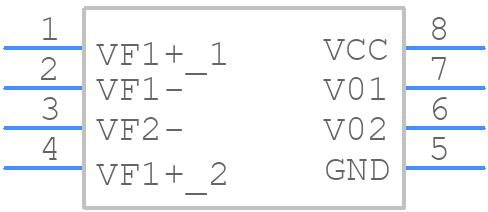

Use the download button to access the HCPL0731 schematic symbol, PCB footprint, and 3D model.
