Description:Obsolete - 8-Pin DIP 1Mbit/s Dual-Channel High Speed Transistor Output Optocoupler (Not recommend for new design. The new equivalent part number is HCPL253xM)
A good PCB layout for HCPL-2530 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help.
Common failure modes of HCPL-2530 include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure proper voltage and current limiting, use a suitable heat sink, and implement overtemperature protection. Additionally, follow proper handling and storage procedures to prevent damage.
Yes, HCPL-2530 can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. Above this frequency, the signal attenuation and distortion may become significant. It's essential to evaluate the device's performance at the desired frequency and consider using a different isolator if necessary.
To ensure EMC, follow proper PCB layout and shielding guidelines, use a shielded cable for the input and output connections, and consider adding EMI filters or chokes to the circuit. Additionally, ensure that the system meets the relevant EMC standards and regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL2530 Overview

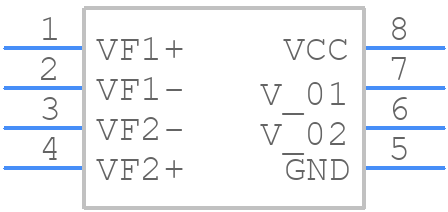

Use the download button to access the HCPL2530 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2,
or try a keyword search, such as Optocoupler
