A good PCB layout for HCPL-2531M involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help.
Common failure modes of HCPL-2531M include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure proper voltage and current limiting, use a suitable heat sink, and implement overtemperature protection. Additionally, follow proper handling and storage procedures to prevent damage.
Yes, HCPL-2531M can be used in high-frequency applications, but it's essential to consider the device's bandwidth and frequency response. The device is suitable for applications up to 10 MHz, but the frequency response may degrade above 5 MHz. Ensure proper signal termination and impedance matching to minimize signal reflections.
To troubleshoot issues with HCPL-2531M, start by verifying the input signal integrity, checking for proper power supply voltage, and ensuring correct output loading. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL2531M Overview

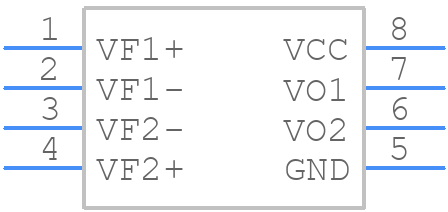

Use the download button to access the HCPL2531M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2,
or try a keyword search, such as Optocoupler
