HCPL2531SDM - onsemi

Description: Superior CMR of 15,000 V/µs Minimum (HCPL4503M); CTR Guaranteed 0°C to 70°C; Dual-Channel: HCPL2530M, HCPL2531M; No Base Connection for Improved Noise Immunity (HCPL4503M); High speed –1 MBit/s; Safety and Regulatory Approvals - UL1577, 5,000 VACRMS for 1 Minute - DIN EN/IEC60747-5-5

Download HCPL2531SDM Model

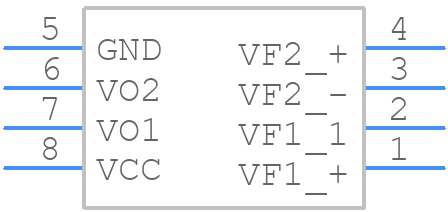

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCPL2531SDM - onsemi PCB footprint - Other - Other - PDIP8 GW CASE 709AC ISSUE O
click to zoom

HCPL2531SDM Details

  • Manufacturer Part Number:

    HCPL2531SDM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    TTL AND CMOS COMPATIBLE, UL APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

HCPL2531SDM Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-2531SDM involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (-40°C to 100°C) and to provide adequate heat sinking. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The recommended input signal amplitude for HCPL-2531SDM is typically between 10 mV to 10 V, and the frequency range is up to 10 MHz. However, the specific requirements may vary depending on the application, so it's essential to consult the datasheet and application notes for more information.
  • To protect the HCPL-2531SDM from EOS and ESD, it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps and mats, and storing the devices in anti-static packaging. Additionally, consider using voltage limiting resistors and TVS diodes in the circuit design to protect against EOS.
  • The typical propagation delay time for the HCPL-2531SDM is around 100 ns, but this can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and application notes for more information on propagation delay and other timing characteristics.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL2531SDM Overview

Use the download button to access the HCPL2531SDM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2, or try a keyword search, such as Optocoupler
