Description:Superior CMR of 15,000 V/µs Minimum (HCPL4503M); CTR Guaranteed 0°C to 70°C; Dual-Channel: HCPL2530M, HCPL2531M; No Base Connection for Improved Noise Immunity (HCPL4503M); High speed –1 MBit/s; Safety and Regulatory Approvals - UL1577, 5,000 VACRMS for 1 Minute - DIN EN/IEC60747-5-5
IEC-60747-5-5, TTL AND CMOS COMPATIBLE, UL APPROVED
Configuration:
SEPARATE, 2 CHANNELS
Data Rate-Nom:
1 MBps
Forward Current-Max:
0.025 A
Isolation Voltage-Max:
5000 V
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Elements:
2
Number of Functions:
2
On-State Current-Max:
0.008 A
Operating Temperature-Max:
70 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TR
Supply Voltage-Min:
4.5 V
Surface Mount:
YES
Terminal Finish:
MATTE TIN
HCPL2531SDVM Frequently Asked Questions (FAQs)
A good PCB layout for HCPL-2531SDVM involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C. Additionally, consider using a heat sink, ensuring good thermal conductivity, and avoiding thermal shocks or gradients. It's also recommended to derate the device's current rating at higher temperatures.
The HCPL-2531SDVM has a common-mode transient immunity of up to 15 kV/μs. However, it's recommended to follow the guidelines in the datasheet for proper circuit design and layout to ensure optimal common-mode transient immunity.
No, HCPL-2531SDVM is an isolation amplifier designed for use in isolated power supply designs. It's not suitable for non-isolated power supply designs, as it requires a minimum of 3.75 kV of isolation voltage between the input and output circuits.
To troubleshoot issues with the HCPL-2531SDVM, start by verifying the input signal and power supply voltage. Check for proper PCB layout, decoupling, and grounding. Use an oscilloscope to measure the input and output signals, and ensure that the device is operating within its recommended specifications. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL2531SDVM Overview

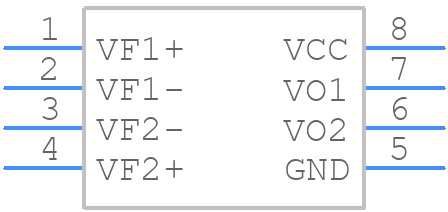

Use the download button to access the HCPL2531SDVM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2,
or try a keyword search, such as Optocoupler
