Description:Last Shipments - 8-Pin DIP 10 Mbit/s Single-Channel High Speed Logic Gate Output Optocoupler (Not recommend for new design. The new equivalent part number is HCPL26xxM)
A good PCB layout for HCPL-2601 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the output circuitry away from the input circuitry.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help ensure reliability.
Common failure modes of HCPL-2601 include input overvoltage, output short circuits, and excessive temperature. To mitigate these, ensure proper input voltage clamping, use output short-circuit protection, and implement thermal monitoring and shutdown mechanisms.
While HCPL-2601 is primarily designed for low-frequency applications, it can be used in high-frequency applications with proper filtering and signal conditioning. However, the device's bandwidth and frequency response should be carefully evaluated to ensure it meets the application's requirements.
To ensure EMC when using HCPL-2601, follow proper PCB layout guidelines, use shielding and filtering, and ensure that the device is properly grounded. Additionally, consider using a common-mode choke or other EMI filtering components to reduce emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL2601 Overview

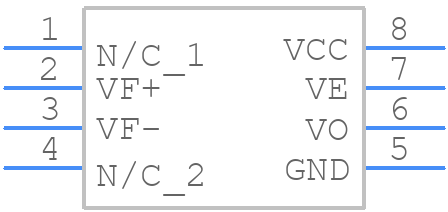

Use the download button to access the HCPL2601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2,
or try a keyword search, such as Optocoupler
