Part Image

HCPL2601SD - onsemi

Description: Obsolete - 8-Pin DIP 10 Mbit/s Single-Channel High Speed Logic Gate Output Optocoupler (Not recommend for new design. The new equivalent part number is HCPL26xxM)

Download HCPL2601SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

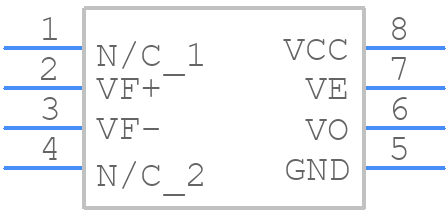

HCPL2601SD - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL2601SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_1_2021
click to zoom
3D Models
HCPL2601SD - onsemi - 3D model - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_1_2021
click to zoom

HCPL2601SD Details

  • Manufacturer Part Number:

    HCPL2601SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4.5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL2601SD Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-2601SD involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its recommended temperature range, use a heat sink if necessary, and follow proper soldering and assembly techniques to prevent thermal stress.
  • The maximum allowable voltage for the HCPL-2601SD is 1.5 kV peak, but it's recommended to operate the device at a voltage below 1.2 kV peak to ensure reliable operation.
  • To troubleshoot issues with the HCPL-2601SD, check the input voltage, output load, and PCB layout. Verify that the device is properly powered, and the input and output circuits are properly connected. Use an oscilloscope to check the input and output waveforms.
  • The HCPL-2601SD is suitable for high-frequency applications up to 100 kHz. However, the device's performance may degrade at higher frequencies due to internal capacitance and inductance. It's recommended to evaluate the device's performance in the specific application.
