Part Image

HCPL2611SDM - onsemi

Description: Wired OR-open collector; Fan-out of 8 over -40°C to +85°C; Superior CMR – 10 kV/µs; U.L. recognized (File # E90700, Vol. 2); Strobable output; Logic gate output; Very high speed – 10 MBit/s

Download HCPL2611SDM Model

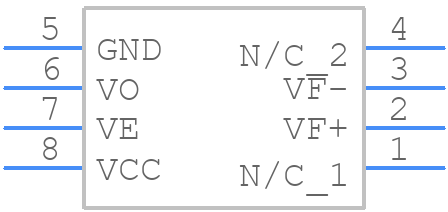

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCPL2611SDM - onsemi PCB footprint - Other - Other - PDIP8 GW CASE 709AC ISSUE O_2024
click to zoom
3D Models
HCPL2611SDM - onsemi  - 3D model - Other - PDIP8 GW CASE 709AC ISSUE O_2024
click to zoom

HCPL2611SDM Details

  • Manufacturer Part Number:

    HCPL2611SDM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL2611SDM Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-2611SDM involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (-40°C to 100°C) and to provide adequate heat sinking. The device should be mounted on a PCB with a thermal conductivity of at least 1 W/m-K, and the ambient temperature should be kept below 85°C.
  • The maximum allowable common-mode transient immunity for HCPL-2611SDM is 10 kV/μs. This means that the device can withstand common-mode transients up to 10 kV with a rise time of 1 μs without damage or malfunction.
  • Yes, HCPL-2611SDM can be used in high-voltage applications above 1 kV, but it requires additional external components to ensure safe operation. A voltage-limiting resistor and a voltage-clamping diode may be needed to protect the device from overvoltage conditions.
  • To troubleshoot issues with HCPL-2611SDM, start by checking the input signal and ensuring it meets the recommended specifications. Verify that the device is properly powered and that the output load is within the recommended range. Check for any signs of physical damage or overheating, and ensure that the device is properly soldered to the PCB. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL2611SDM Overview

Use the download button to access the HCPL2611SDM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2, or try a keyword search, such as Optocoupler
