Part Image

HCPL2630M - onsemi

Description: Strobable output; Superior CMR – 10 kV/µs; Very high speed – 10 MBit/s; Fan-out of 8 over -40°C to +85°C; Logic gate output; Wired OR-open collector; U.L. recognized (File # E90700, Vol. 2)

Download HCPL2630M Model

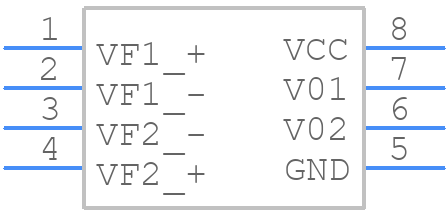

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCPL2630M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P
click to zoom
3D Models
HCPL2630M - onsemi  - 3D model - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P
click to zoom

HCPL2630M Details

  • Manufacturer Part Number:

    HCPL2630M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Manufacturer Package Code:

    646CQ

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL2630M Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-2630M involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the output circuitry away from the input circuitry.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help ensure the reliability of the HCPL-2630M.
  • Common failure modes of HCPL-2630M include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure that the device is operated within the recommended voltage and current ratings, use proper thermal management, and implement overvoltage and overcurrent protection circuits.
  • To troubleshoot issues with the HCPL-2630M, start by verifying the input signal and power supply voltage. Check for proper PCB layout, soldering, and component selection. Use an oscilloscope to measure the input and output signals, and consult the datasheet for troubleshooting guidelines.
  • The HCPL-2630M can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. To use it in high-frequency applications, ensure that the input signal is properly filtered and that the output circuitry is designed to handle the high-frequency signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL2630M Overview

Use the download button to access the HCPL2630M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2, or try a keyword search, such as Optocoupler
