A good PCB layout for HCPL-2631SDM involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
The recommended input signal amplitude for HCPL-2631SDM is typically in the range of 10-20 mA, and the frequency range is up to 10 MHz. However, the specific requirements may vary depending on the application, so it's essential to consult the datasheet and application notes.
To troubleshoot common issues with HCPL-2631SDM, check the input signal amplitude and frequency, ensure proper power supply decoupling, and verify that the device is operated within its recommended temperature range. Also, consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, HCPL-2631SDM is designed for high-voltage isolation applications, with a minimum isolation voltage of 3.75 kVrms. However, ensure that the device is used within its recommended specifications and follow proper safety precautions when working with high-voltage systems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL2631SDM Overview

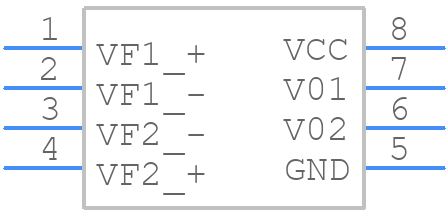

Use the download button to access the HCPL2631SDM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL2,
or try a keyword search, such as Optocoupler
