HCPL3120 - Avago Technologies

Description: 2.0 Amp Output Current IGBT Gate Drive Optocoupler

Download HCPL3120 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HCPL3120 model

Email notifications will be applied after download.

Send part feedback

Symbol

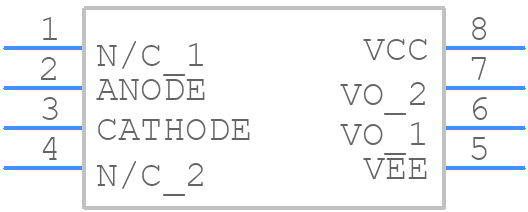

HCPL3120 - Avago Technologies - PCB symbol

PCB Footprints

HCPL3120 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-pin DIP Package

3D Models

HCPL3120 - Avago Technologies - 3D model - Dual-In-Line Packages - 8-pin DIP Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for HCPL3120
Part Number HCPL3120
Manufacturer Avago Technologies
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 8-pin DIP Package
Released Date Oct 12, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HCPL3120 Details

Manufacturer Part Number:
HCPL3120
Manufacturer:
Avago Technologies

Trust Checks

Expert Contribution

System Verified

Community Approved

HCPL3120 Overview

Use the download button to access the HCPL3120 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HCPL3, or try a keyword search, such as Optocoupler
