Description:Programmable Sense Voltage; AC or DC Input; Logic Level Compatibility; Threshold Guaranteed Over Temperature (0°C to 70°C); Safety and Regulatory Approvals – UL1577, 5,000 VACRMS for 1 Minute – DIN EN/IEC60747-5-5
A good PCB layout for HCPL3700M involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 0.1uF capacitor between VCC and GND to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and consider the derating of the device's current rating. Also, ensure good thermal management, such as using a heat sink or a thermally conductive material, to prevent overheating.
The HCPL3700M requires a differential input signal with a minimum amplitude of 200mV. It's recommended to use a signal conditioning circuit, such as a voltage divider or an op-amp, to ensure the input signal meets the required amplitude and common-mode voltage range.
To troubleshoot issues with the HCPL3700M, start by verifying the input signal amplitude and frequency, and ensuring the device is properly powered. Check the output voltage and current, and verify that the output is not overloaded. If issues persist, check for noise or interference on the input or output lines, and ensure the device is properly soldered and mounted.
While the HCPL3700M is designed for high-voltage applications, it's essential to ensure the device is used within its recommended operating voltage range (up to 30V). Additionally, consider the isolation voltage rating (3.75kVrms) and ensure the device is properly isolated from the high-voltage circuitry.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL3700M Overview

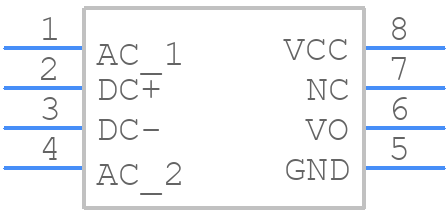

Use the download button to access the HCPL3700M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL3,
or try a keyword search, such as Optocoupler
