A good PCB layout for HCPL3700SM involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure the reliability of HCPL3700SM in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using a thermally conductive interface material and ensure that the device is not exposed to thermal shocks or gradients.
Common failure modes of HCPL3700SM include overvoltage, overcurrent, and overheating. To mitigate these, ensure that the device is operated within the recommended voltage and current ratings, use suitable protection circuits such as TVS diodes or fuses, and implement a reliable cooling system. Additionally, consider using a redundant or backup system to minimize the impact of device failure.
To troubleshoot issues with HCPL3700SM, start by checking the input signal quality, ensuring that it's within the recommended amplitude and frequency range. Verify that the device is properly powered and that the output load is within the recommended range. Use an oscilloscope to monitor the input and output signals, and check for any signs of overheating or overvoltage. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, HCPL3700SM is suitable for use in high-reliability or safety-critical applications, as it's designed to meet the requirements of IEC 60747-5-5 and has a high level of immunity to electromagnetic interference. However, it's essential to follow the recommended design and testing guidelines, and to consult with onsemi's application engineers to ensure that the device meets the specific requirements of your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL3700SM Overview

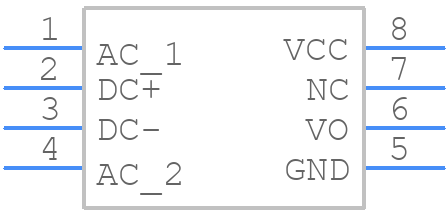

Use the download button to access the HCPL3700SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL3,
or try a keyword search, such as Optocoupler
