A good PCB layout for HCPL3700SV involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the traces between the input and output pins. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure the reliability of HCPL3700SV in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and to provide adequate heat sinking. Additionally, consider using a thermal interface material between the device and the heat sink, and ensure that the PCB is designed to withstand the high temperatures.
The maximum allowable common-mode transient immunity for HCPL3700SV is 10 kV/μs. This means that the device can withstand common-mode transients up to 10 kV with a rise time of 1 μs or faster.
No, HCPL3700SV is an isolation amplifier designed for use in isolated power supply designs. It's not suitable for non-isolated power supply designs, as it requires a separate power supply for the input and output stages.
To troubleshoot issues with HCPL3700SV, start by checking the input signal and power supply voltages to ensure they are within the recommended ranges. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check the output voltage and look for any signs of oscillation or noise. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL3700SV Overview

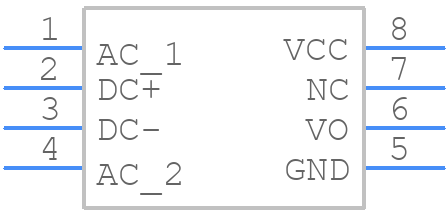

Use the download button to access the HCPL3700SV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL3,
or try a keyword search, such as Optocoupler
