Description:Programmable Sense Voltage; AC or DC Input; Logic Level Compatibility; Threshold Guaranteed Over Temperature (0°C to 70°C); Safety and Regulatory Approvals – UL1577, 5,000 VACRMS for 1 Minute – DIN EN/IEC60747-5-5
CMOS COMPATIBLE, TTL COMPATIBLE, IEC-60747-5-5, UL APPROVED
Configuration:
COMPLEX
Forward Current-Max:
0.05 A
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.03 A
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TUBE
Response Time-Nom:
0.000045 ns
Shape:
RECTANGULAR
Supply Voltage-Min:
2 V
Surface Mount:
NO
HCPL3700VM Frequently Asked Questions (FAQs)
A good PCB layout for HCPL3700VM involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the traces between the input and output pins. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure the reliability of HCPL3700VM in high-temperature applications, it's essential to follow the recommended operating temperature range (-40°C to 100°C) and to provide adequate heat sinking. Additionally, consider using a thermal interface material between the device and the heat sink, and ensure that the PCB is designed to withstand the high temperatures.
The maximum allowable common-mode transient immunity for HCPL3700VM is 10 kV/μs. This means that the device can withstand common-mode transients up to 10 kV with a rise time of 1 μs without compromising its performance or reliability.
No, HCPL3700VM is an isolation amplifier designed for use in isolated power supply designs. It's not suitable for non-isolated power supply designs, as it requires a separate power supply for the input and output stages to maintain isolation.
To troubleshoot issues with HCPL3700VM, start by checking the input signal and power supply voltages to ensure they are within the recommended ranges. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to monitor the input and output signals, and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL3700VM Overview

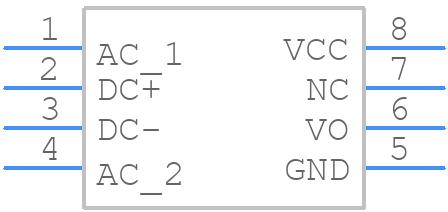

Use the download button to access the HCPL3700VM schematic symbol, PCB footprint, and 3D model.
