HCPL4503M - onsemi

Description: Superior CMR of 15,000 V/µs Minimum (HCPL4503M); CTR Guaranteed 0°C to 70°C; High speed –1 MBit/s; No Base Connection for Improved Noise Immunity (HCPL4503M); Safety and Regulatory Approvals - UL1577, 5,000 VACRMS for 1 Minute - DIN EN/IEC60747-5-5; Dual-Channel: HCPL2530M, HCPL2531M

Download HCPL4503M Model

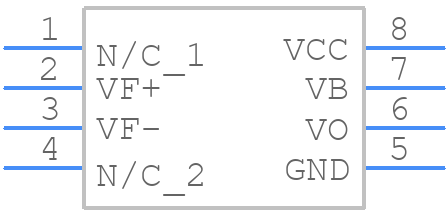

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCPL4503M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PDIP
click to zoom
3D Models
HCPL4503M - onsemi  - 3D model - Dual-In-Line Packages - 8 PDIP
click to zoom

HCPL4503M Details

  • Manufacturer Part Number:

    HCPL4503M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    TTL AND CMOS COMPATIBLE, UL APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    19%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.1 W

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

HCPL4503M Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL4503M involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 0.1uF capacitor between VCC and GND to filter out noise.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and consider the derating of the device's current rating. Also, ensure good thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature within the recommended range.
  • The HCPL4503M requires a differential input signal with a minimum amplitude of 200mV. It's recommended to use a signal conditioning circuit, such as a differential amplifier or a voltage-controlled oscillator, to ensure a clean and stable input signal.
  • To troubleshoot issues with the HCPL4503M, start by checking the input signal quality, ensuring it meets the recommended amplitude and frequency requirements. Verify the power supply voltage and decoupling capacitors are properly connected. Use an oscilloscope to inspect the input and output waveforms, and check for any signs of noise or distortion.
  • Yes, the HCPL4503M can be used in high-frequency applications, such as in switching power supplies. However, it's essential to consider the device's bandwidth (up to 20MHz) and ensure the input signal frequency is within the recommended range. Additionally, proper PCB layout and signal conditioning are crucial to minimize noise and ensure reliable operation.
