Description:Superior CMR of 15,000 V/µs Minimum (HCPL4503M); CTR Guaranteed 0°C to 70°C; High speed –1 MBit/s; No Base Connection for Improved Noise Immunity (HCPL4503M); Safety and Regulatory Approvals - UL1577, 5,000 VACRMS for 1 Minute - DIN EN/IEC60747-5-5; Dual-Channel: HCPL2530M, HCPL2531M
IEC-60747-5-5, TTL AND CMOS COMPATIBLE, UL APPROVED
Configuration:
SINGLE
Data Rate-Nom:
1 MBps
Forward Current-Max:
0.025 A
Isolation Voltage-Max:
5000 V
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.008 A
Operating Temperature-Max:
70 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TR
Supply Voltage-Min:
4.5 V
Surface Mount:
YES
Terminal Finish:
MATTE TIN
HCPL4503TSR2VM Frequently Asked Questions (FAQs)
A good PCB layout for HCPL4503TSR2VM involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and EMI. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C, and to consider the derating of the device's current rating at higher temperatures. Additionally, ensure good thermal management, such as using a heat sink or thermal pad, and follow proper soldering and assembly techniques.
HCPL4503TSR2VM has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, or ESD bag, and avoiding direct contact with the device's pins.
No, HCPL4503TSR2VM is an isolation amplifier designed for use in isolated power supply designs. It's not suitable for non-isolated power supply designs, as it requires a separate power supply for the input and output stages.
To troubleshoot common issues with HCPL4503TSR2VM, start by checking the input signal and power supply voltages, ensuring they are within the recommended ranges. Then, verify the PCB layout and assembly, looking for any signs of damage or contamination. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL4503TSR2VM Overview

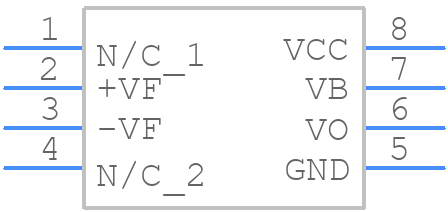

Use the download button to access the HCPL4503TSR2VM schematic symbol, PCB footprint, and 3D model.
