HCTL-2001-A00 footprint, schematic symbol and 3D model by Avago Technologies

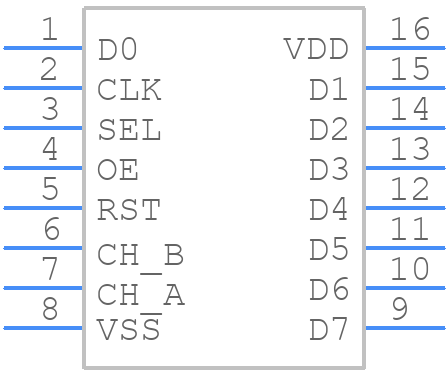

Symbol

click to zoom

PCB Footprints

HCTL-2001-A00 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-pin-PDIP (package-A)

click to zoom

3D Models

HCTL-2001-A00 - Avago Technologies - 3D model - Dual-In-Line Packages - 16-pin-PDIP (package-A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HCTL-2001-A00
Part Number HCTL-2001-A00
Manufacturer Avago Technologies
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 16-pin-PDIP (package-A)
Released Date Jan 30, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HCTL-2001-A00 Details

Manufacturer Part Number:
HCTL-2001-A00
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
DIP, DIP16,.3
Pin Count:
16
Reach Compliance Code:
Compliant
HTS Code:
8542.39.00.01
Manufacturer:
Avago Technologies
YTEOL:
0
Interface IC Type:
INTERFACE CIRCUIT
JESD-30 Code:
R-PDIP-T16
JESD-609 Code:
e3
Length:
26.162 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
4.45 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

HCTL-2001-A00 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material to improve heat transfer. Operate the device within the recommended temperature range (0°C to 70°C).
Power up the device in the following sequence: VCC, then VEE, then input signals. Ensure that the power supplies are stable and within the recommended voltage range before applying input signals.
Use an oscilloscope to check the input and output signals. Verify that the power supplies are within the recommended range. Check for noise or interference on the input signals. Consult the datasheet and application notes for troubleshooting guidelines.
No, the HCTL-2001-A00 is not designed for radiation-hardened applications. It is not tested or guaranteed to operate in high-radiation environments. Consult with Broadcom Limited for radiation-hardened alternatives.
