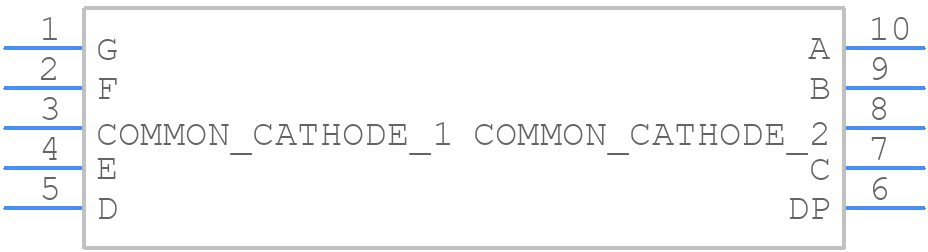

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HD1107O
- Part Number HD1107O
- Manufacturer SIEMENS
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - HD1107O SUPER RED
- Released Date Jan 2, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HD1107O Details
-
Manufacturer Part Number:
HD1107O
-
Manufacturer:
Siemens Semiconductors
Trust Checks
Expert Contribution
System Verified
Community Approved
HD1107O Overview
Use the download button to access the HD1107O schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HD110,
or try a keyword search, such as LED Displays
