HD15-SN-24 footprint, schematic symbol and 3D model by Adam Tech

Symbol

click to zoom

PCB Footprints

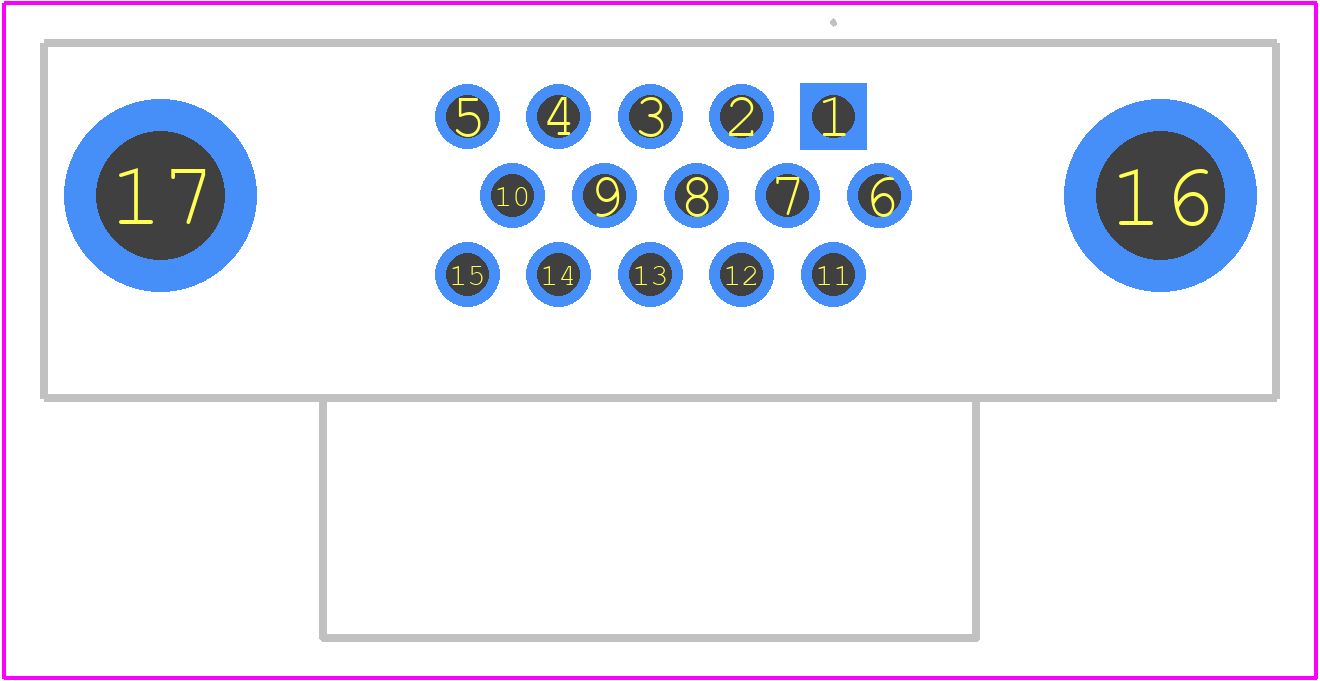

HD15-SN-24 - Adam Tech PCB footprint - Other - Other - HD15-SN-24-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HD15-SN-24
Part Number HD15-SN-24
Manufacturer Adam Tech
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - HD15-SN-24-2
Released Date Jul 28, 2026
Last Modified Date Jul 30, 2026 6:34 PM UTC
Pinout / Pin List Click Here (Member Only)

HD15-SN-24 Details

Manufacturer Part Number:
HD15-SN-24
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Adam Technologies Inc
Connector Type:
D SUBMINIATURE CONNECTOR

HD15-SN-24 Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 Nm (4-12 in-lbs) for the screws on the HD15-SN-24 connector.
Yes, the HD15-SN-24 connector is suitable for outdoor use, but it's recommended to use a protective coating or sealant to ensure IP67 rating.
Yes, the HD15-SN-24 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6.
The maximum operating temperature for the HD15-SN-24 connector is 125°C (257°F).
Yes, the HD15-SN-24 connector meets the UL94-V0 flammability rating, making it suitable for use in applications requiring this rating.

Trust Checks

Community Provided

System Verified

Community Approved

HD15-SN-24 Overview

Use the download button to access the HD15-SN-24 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HD15-, or try a keyword search, such as D Type Connectors
