A good PCB layout for the HD3SS212ZQER involves keeping the high-speed signals away from the power and ground planes, using a solid ground plane, and minimizing the length of the traces. Additionally, using a shielded cable for the USB signals and placing the device close to the connector can help reduce EMI.
The HD3SS212ZQER requires a 1.8V to 3.3V power supply, and it's recommended to power the device using a low-dropout regulator (LDO) to minimize noise. The power sequencing requirements involve powering up the VCC pin first, followed by the VBUS pin, and then the USB signals.
The HD3SS212ZQER has a thermal pad that must be connected to a solid ground plane to dissipate heat. A thermal via or a thermal pad on the PCB can help to improve heat dissipation. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to keep the device within its operating temperature range.
To implement the HD3SS212ZQER in a USB-C application, you'll need to connect the device to the USB-C receptacle, configure the device for USB-C mode, and use an external resistor to set the device's operating mode. You'll also need to ensure that the device is properly powered and that the USB signals are properly routed.
The HD3SS212ZQER has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Additionally, using ESD protection devices such as TVS diodes or ESD arrays on the USB signals can help to protect the device from ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS212ZQER Overview

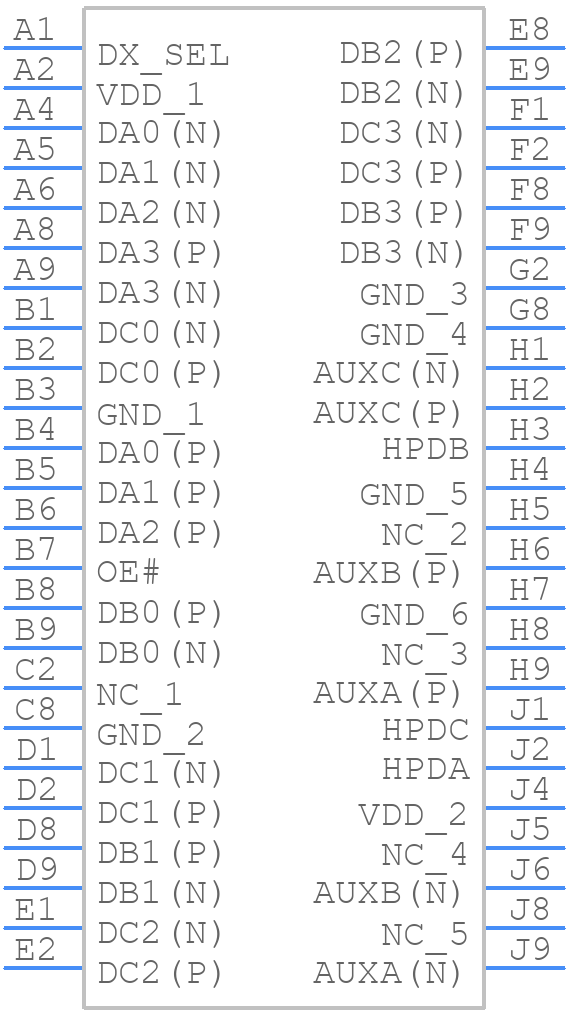

Use the download button to access the HD3SS212ZQER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
