Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and grounding to minimize EMI and ensure reliable operation.
The HD3SS212ZXHR can be configured for USB-C PD applications by using the TI-provided configuration tool, which generates the necessary register settings and firmware code for the device. Additionally, TI provides a comprehensive guide for USB-C PD implementation in the application note SLUAEC3.
The HD3SS212ZXHR supports cable lengths up to 3 meters for USB 3.2 Gen 2 applications, assuming a high-quality cable with minimal signal attenuation. However, the actual cable length may vary depending on the specific application and cable characteristics.
Yes, the HD3SS212ZXHR is AEC-Q100 qualified and can be used in automotive applications. However, it is essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards and regulations.
Texas Instruments provides a comprehensive troubleshooting guide for the HD3SS212ZXHR in the application note SLVAE05, which includes steps for debugging common issues, such as signal integrity problems, device malfunction, and power management issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS212ZXHR Overview

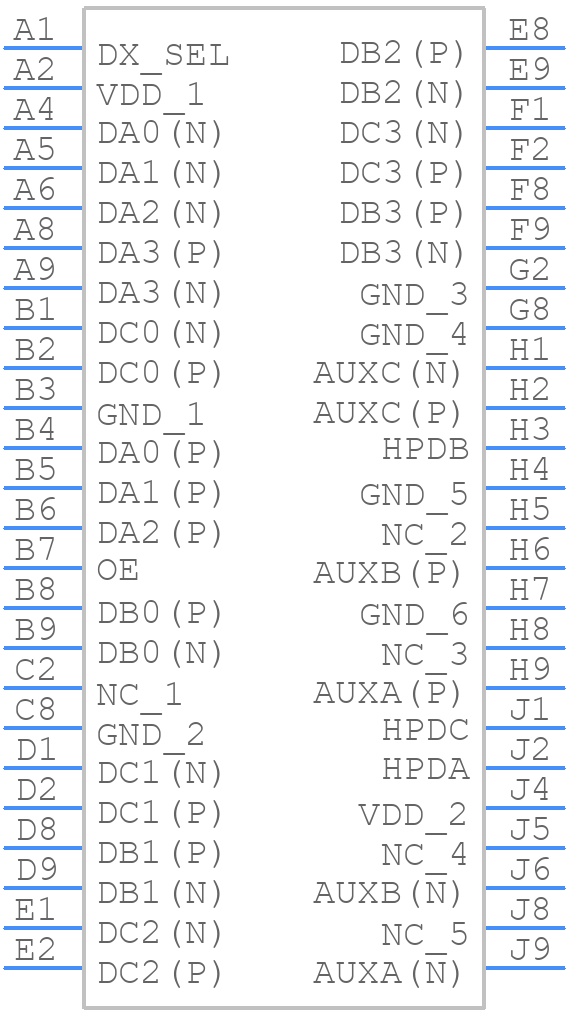

Use the download button to access the HD3SS212ZXHR schematic symbol, PCB footprint, and 3D model.
