A good PCB layout for the HD3SS214IZQER involves keeping the high-speed signals away from the power and ground planes, using a solid ground plane, and minimizing the length of the traces. Additionally, using a shielded cable for the USB signals and placing the device close to the connector can help reduce EMI.
The HD3SS214IZQER requires a 1.8V to 3.3V power supply, and it's recommended to power the device with a clean and stable voltage source. The power sequencing requirements involve powering up the VCC pin before the VBUS pin, and ensuring that the VCC pin is stable before enabling the device.
The HD3SS214IZQER has a thermal pad that must be connected to a solid ground plane to dissipate heat. A thermal via or a thermal pad on the PCB can help to improve heat dissipation. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to keep the device within its operating temperature range.
To implement the HD3SS214IZQER in a USB-C application, you need to connect the device to the CC pins of the USB-C connector and configure the device to detect the USB-C cable orientation. You also need to ensure that the device is properly powered and that the VBUS pin is connected to the VBUS pin of the USB-C connector.
The HD3SS214IZQER has built-in ESD protection, but it's still recommended to add external ESD protection devices to protect the device from electrostatic discharge. Additionally, ensuring that the PCB is designed with ESD protection in mind, such as using ESD-resistant components and following good ESD handling practices, can help to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD3SS214IZQER Overview

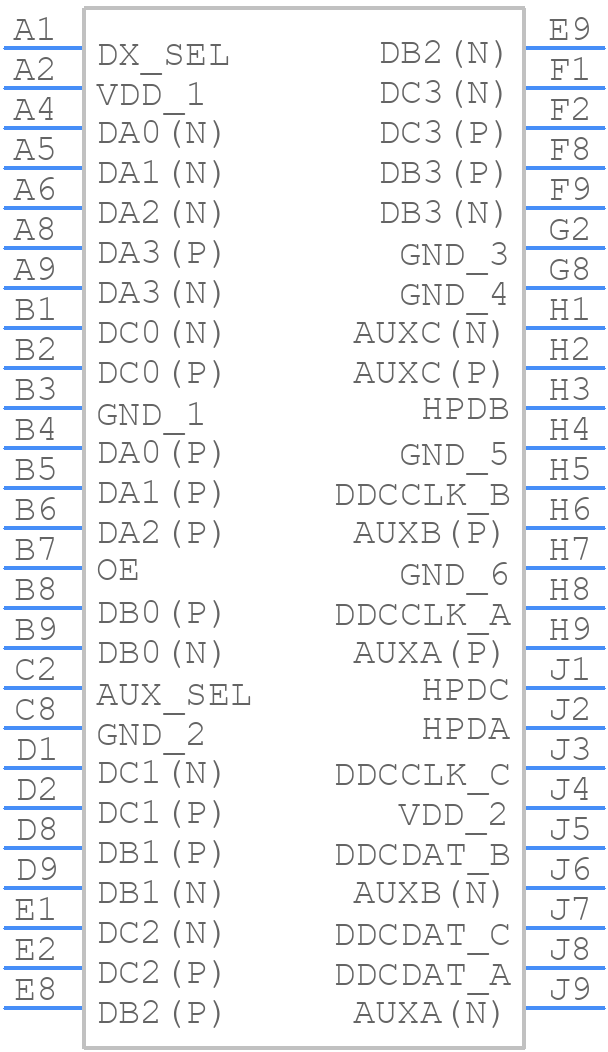

Use the download button to access the HD3SS214IZQER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
