HD3SS215ZXHR - Texas Instruments

Description: Multiplexer Switch ICs 6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching 50-NFBGA

Download HD3SS215ZXHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

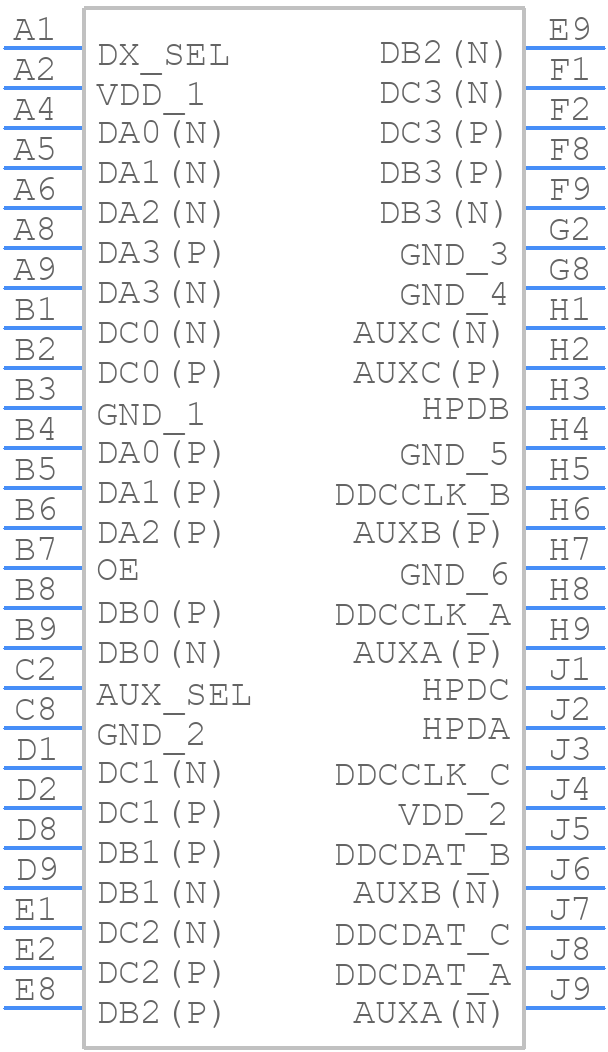

HD3SS215ZXHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS215ZXHR - Texas Instruments PCB footprint - BGA - BGA - ZXH0050A
click to zoom
3D Models
HD3SS215ZXHR - Texas Instruments - 3D model - BGA - ZXH0050A
click to zoom

HD3SS215ZXHR Details

  • Manufacturer Part Number:

    HD3SS215ZXHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Input Voltage-Max:

    1.8 V

  • Input Voltage-Min:

    -1.8 V

  • JESD-30 Code:

    S-PBGA-B50

  • JESD-609 Code:

    e1

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    50

  • Off-state Isolation-Nom:

    21 dB

  • On-state Resistance Match-Nom:

    1.5 Ω

  • On-state Resistance-Max (Ron):

    14 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA50,9X9,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20000 ns

  • Switch-on Time-Max:

    1000 ns

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

HD3SS215ZXHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the HD3SS215ZXHR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
  • To handle high-speed signals and minimize EMI, it is recommended to use controlled impedance traces, add signal termination, and use shielding or guard traces to reduce radiation. Additionally, follow the recommended layout guidelines and use EMI-reducing components such as chokes or filters.
  • The maximum cable length supported by the HD3SS215ZXHR depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 3 meters to ensure reliable operation and minimize signal degradation.
  • The HD3SS215ZXHR can be configured for different USB modes using the device's configuration pins and registers. Refer to the device's datasheet and programming guide for specific details on how to configure the device for different USB modes.
  • The power consumption of the HD3SS215ZXHR varies depending on the operating mode and the specific application. Refer to the device's datasheet for detailed power consumption specifications, and use the Texas Instruments Power Estimation Tool to estimate power consumption for your specific design.
