HD3SS3202IRSVR - Texas Instruments

Description: Two-channel differential 2:1/1:2 USB3.1 mux & demux

Download HD3SS3202IRSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

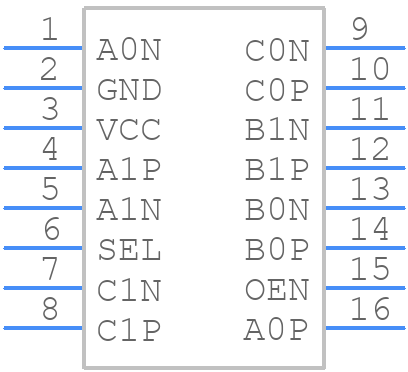

Symbol
HD3SS3202IRSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3202IRSVR - Texas Instruments PCB footprint - Other - Other - HD3SS3202IRSVR-4
click to zoom
3D Models
HD3SS3202IRSVR - Texas Instruments - 3D model - Other - HD3SS3202IRSVR-4
click to zoom

HD3SS3202IRSVR Details

  • Manufacturer Part Number:

    HD3SS3202IRSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-06-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Bandwidth-Nom:

    10000 MHz

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    20 dB

  • On-state Resistance Match-Nom:

    0.7 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    500 ns

  • Switch-on Time-Max:

    500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

HD3SS3202IRSVR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • The HD3SS3202IRSVR requires a 1.8V to 3.3V power supply. Ensure that the power supply is stable and clean. Power sequencing is not critical, but it's recommended to power up the VCC pin first, followed by the VCCIO pin.
  • The HD3SS3202IRSVR has a thermal pad that must be connected to a solid ground plane to dissipate heat. Use thermal vias to connect the thermal pad to the ground plane. Ensure good airflow around the device and consider using a heat sink if the device is expected to operate at high temperatures.
