HD64F2238BFA13I - Renesas Electronics

Description: MCU 16-bit H8S CISC 256KB Flash 5V 100-Pin PQFP

Download HD64F2238BFA13I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

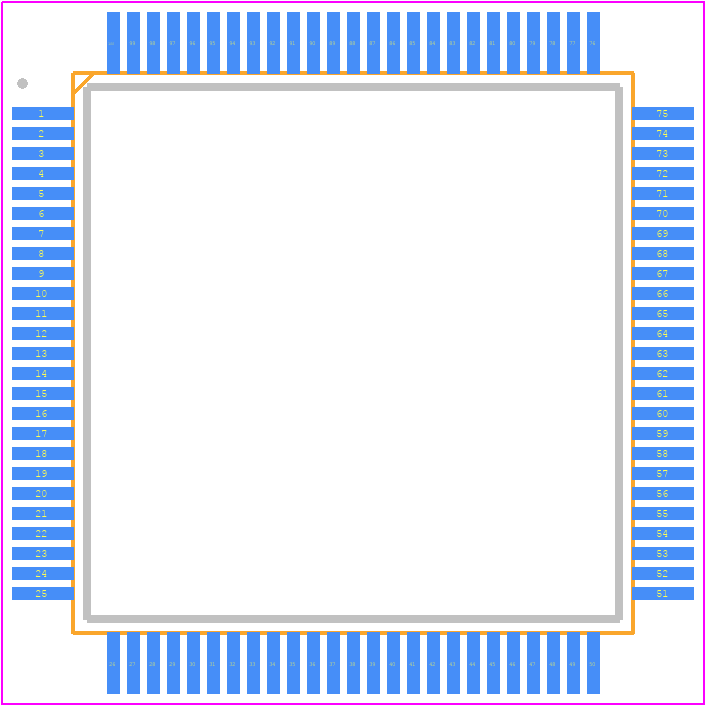

HD64F2238BFA13I - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100KA-A
click to zoom
3D Models
HD64F2238BFA13I - Renesas Electronics  - 3D model - Quad Flat Packages - PRQP0100KA-A
click to zoom

HD64F2238BFA13I Details

  • Manufacturer Part Number:

    HD64F2238BFA13I

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bit Size:

    16

  • CPU Family:

    H8S/2000

  • JESD-30 Code:

    S-PQFP-G100

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP100,.63SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    16384

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Speed:

    13.5 MHz

  • Supply Current-Max:

    40 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

HD64F2238BFA13I Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for HD64F2238BFA13I is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for HD64F2238BFA13I can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and clock configuration options.
  • The maximum clock frequency supported by HD64F2238BFA13I is 16 MHz, using an external clock source or the internal high-speed clock (HCLK).
  • The ADC on HD64F2238BFA13I can be used by configuring the ADC Control Register (ADCCR), selecting the analog input channel, and setting the conversion mode. Refer to the datasheet for specific register settings and ADC operation details.
  • The Watchdog Timer (WDT) on HD64F2238BFA13I is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the WDT within a specified time period.
