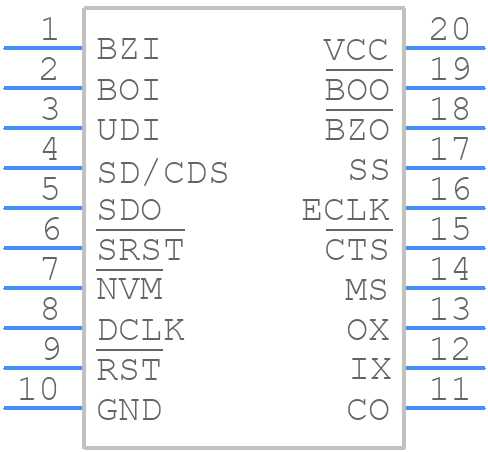

HD9P6409-9Z - Renesas Electronics

HD9P6409-9Z Details

• Manufacturer Part Number:

  HD9P6409-9Z

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOICW

• Package Description:

  SO-20

• Pin Count:

  20

• Manufacturer Package Code:

  M20.3

• Country Of Origin:

  Malaysia, Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2017-10-20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Data Rate:

  1000 Mbps

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  18 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Telecom IC Type:

  MANCHESTER ENCODER/DECODER

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
