HDC1000YPAT - Texas Instruments

Description: Texas Instruments HDC1000YPAT 8-pin BGA Surface Mount Temperature & Humidity Sensor, 2.07 x 1.62 x 0.41mm

Download HDC1000YPAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

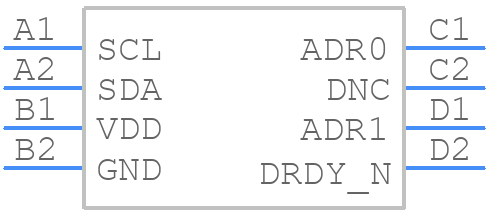

HDC1000YPAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC1000YPAT - Texas Instruments PCB footprint - BGA - BGA - YPA0008
click to zoom
3D Models
HDC1000YPAT - Texas Instruments - 3D model - BGA - YPA0008
click to zoom

HDC1000YPAT Details

  • Manufacturer Part Number:

    HDC1000YPAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSBGA-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.04 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.59 mm

HDC1000YPAT Frequently Asked Questions (FAQs)

  • The HDC1000YPAT is a sensitive device and requires careful layout and placement to ensure accurate readings. It's recommended to place the device near the sensing area, use a ground plane to reduce noise, and keep the device away from high-frequency sources.
  • The HDC1000YPAT does not require calibration, as it is a digital sensor that provides calibrated temperature and humidity readings. However, it's recommended to perform a system-level calibration to ensure accuracy in the specific application.
  • The maximum cable length for the I2C interface depends on the specific application and the capacitance of the cable. As a general rule, it's recommended to keep the cable length as short as possible (less than 10 cm) to ensure reliable communication.
  • The HDC1000YPAT has a built-in POR and BOR circuitry that resets the device in case of power-on or brown-out conditions. It's recommended to ensure a stable power supply and to add external circuitry to handle power-on and brown-out conditions if necessary.
  • The HDC1000YPAT is specified to operate from -40°C to 85°C, but it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 60°C) to ensure optimal performance and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDC1000YPAT Overview

Use the download button to access the HDC1000YPAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC10, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
