HDC1008YPAT - Texas Instruments

Description: Board Mount Humidity Sensors Integr Low Pwr Hum & Temp Dig Sensor

Download HDC1008YPAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

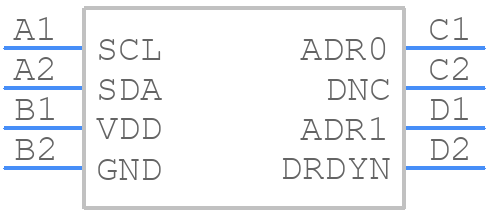

HDC1008YPAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC1008YPAT - Texas Instruments PCB footprint - BGA - BGA - YPA0008
click to zoom
3D Models
HDC1008YPAT - Texas Instruments - 3D model - BGA - YPA0008
click to zoom

HDC1008YPAT Details

  • Manufacturer Part Number:

    HDC1008YPAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSBGA-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.04 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.59 mm

HDC1008YPAT Frequently Asked Questions (FAQs)

  • The HDC1008YPAT is a sensitive device and requires careful layout and placement to ensure accurate and reliable operation. It is recommended to place the device near the sensing area, use a solid ground plane, and keep the device away from high-frequency noise sources.
  • The HDC1008YPAT does not require calibration, as it is a digital sensor with internal calibration. However, it is recommended to perform a system-level calibration to account for any variations in the system.
  • The HDC1008YPAT can measure humidity from 0% to 100% relative humidity (RH). However, the accuracy of the measurement may degrade at very low or very high humidity levels.
  • The HDC1008YPAT is rated for operation up to 85°C, but it can be used in high-temperature applications with some limitations. However, the accuracy and reliability of the device may degrade at temperatures above 85°C.
  • The HDC1008YPAT communicates using an I2C interface, and can be easily interfaced with most microcontrollers. The device requires a 1.8V to 3.6V power supply, and the I2C clock frequency should be limited to 400 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDC1008YPAT Overview

Use the download button to access the HDC1008YPAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC10, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Suggested Parts

If you searched for HDC1008YPAT, you might also be interested in these parts:
Part Number
HDC1010YPAR
1N4148WS_R1_00001
CL21A475KOFNNNE
C1206C103J3GECTU
CC1206KRX7R8BB104
CR1206-FX-1000ELF
RCS06034K70JNEA
90130-3216
7-520315-0

Parts related to HDC1008YPAT

Showing 0 results
