HDC1010YPAT footprint, schematic symbol and 3D model by Texas Instruments

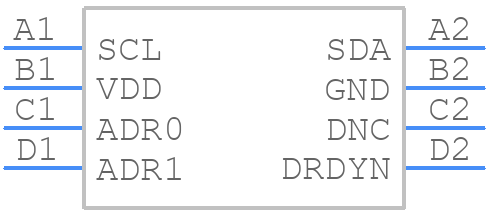

Symbol

click to zoom

PCB Footprints

HDC1010YPAT - Texas Instruments PCB footprint - Other - Other - YPA0008_2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDC1010YPAT
Part Number HDC1010YPAT
Manufacturer Texas Instruments
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - YPA0008_2
Released Date Apr 25, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HDC1010YPAT Details

Manufacturer Part Number:
HDC1010YPAT
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2016-05-18
Manufacturer:
Texas Instruments
YTEOL:
0
Accuracy-Max (%):
2%
Accuracy-Max (Cel):
0.2 Cel
Additional Feature:
SEATED HGT CALCULATED
Body Breadth:
1.59 mm
Body Height:
0.41 mm
Body Length or Diameter:
2.04 mm
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
OPEN-DRAIN
Output Type:
DIGITAL VOLTAGE
Package Body Material:
PLASTIC
Package Equivalence Code:
BGA8,2X4,20
Package Shape/Style:
RECTANGULAR
Sensors/Transducers Type:
HUMIDITY AND TEMPERATURE SENSOR
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.7 V
Surface Mount:
YES
Terminal Finish:
TIN SILVER COPPER

HDC1010YPAT Frequently Asked Questions (FAQs)

A good PCB layout for the HDC1010YPAT involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. TI provides a recommended layout in the datasheet and application notes.
Calibration of the HDC1010YPAT involves a two-point calibration for humidity and a one-point calibration for temperature. TI provides a calibration procedure in the datasheet and application notes, which involves using a calibrated humidity and temperature chamber.
The recommended power-up sequence for the HDC1010YPAT is to apply VDD first, followed by VCC, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly and prevents damage to the device.
The HDC1010YPAT has a sleep mode that can be enabled by setting the SD pin low. In sleep mode, the device consumes very low power. To wake up the device, the SD pin should be set high, and the device will take a few milliseconds to become active again.
The maximum cable length for the HDC1010YPAT's I2C interface depends on the capacitance of the cable and the clock frequency. As a general rule, TI recommends keeping the cable length below 30 cm to ensure reliable communication.
