HDC2010YPAR - Texas Instruments

Description: ±2% ultra-low-power, digital humidity sensor with temperature sensor in WCSP

Download HDC2010YPAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

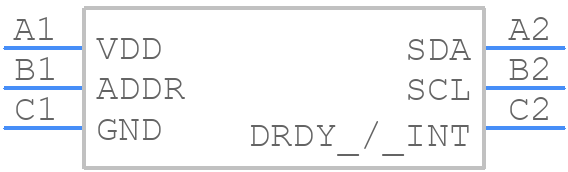

HDC2010YPAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC2010YPAR - Texas Instruments PCB footprint - Other - Other - YPA0006
click to zoom
3D Models
HDC2010YPAR - Texas Instruments - 3D model - Other - YPA0006
click to zoom

HDC2010YPAR Details

  • Manufacturer Part Number:

    HDC2010YPAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-08-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (%):

    2%

  • Accuracy-Max (Cel):

    0.2 Cel

  • Body Breadth:

    1.46 mm

  • Body Height:

    0.675 mm

  • Body Length or Diameter:

    1.46 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.73 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER

HDC2010YPAR Frequently Asked Questions (FAQs)

  • The HDC2010YPAR is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from noise sources, using a solid ground plane, and minimizing trace lengths.
  • The HDC2010YPAR does not require calibration. It is a digital humidity and temperature sensor that provides calibrated output data. However, it is recommended to perform a system-level calibration to ensure accuracy and compensate for any system-level errors.
  • The maximum cable length for the I2C interface of the HDC2010YPAR depends on the system design and the capacitance of the cable. As a general guideline, the maximum cable length should not exceed 10 meters. However, it is recommended to use a shorter cable length to minimize signal degradation and ensure reliable communication.
  • The HDC2010YPAR has a sleep mode that can be enabled to reduce power consumption. To wake up the device, a wake-up signal can be sent to the device through the I2C interface. The wake-up time is typically around 2-3 ms, and the device will be ready to take measurements after waking up.
  • The recommended power-up sequence for the HDC2010YPAR is to power up the VDD pin first, followed by the VIO pin. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
