- Stock & Prices $ Price & Stock for HDC2022DEPR
- Part Number HDC2022DEPR
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DEP0006A
- Released Date Jan 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HDC2022DEPR Details
-
Manufacturer Part Number:
HDC2022DEPR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2020-07-02
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Accuracy-Max (%):
2%
HDC2022DEPR Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the HDC2022DEPR involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the TI application note 'HDC2022DEPR Layout and Placement Guidelines' for more information.
-
To optimize the HDC2022DEPR for low power consumption, use the lowest possible supply voltage, reduce the clock frequency, and use the device's built-in power-saving features such as the 'Low Power Mode' and 'Shutdown' modes. Additionally, minimize the number of active channels and use the 'Channel Disable' feature to turn off unused channels.
-
The HDC2022DEPR is rated for operation in a relative humidity range of 5% to 95% non-condensing. However, it's recommended to keep the device in a dry environment with minimal humidity to ensure optimal performance and reliability.
-
The HDC2022DEPR is rated for operation in a temperature range of -40°C to 125°C. However, the device's accuracy and reliability may be affected at extreme temperatures. It's recommended to use the device within the specified operating temperature range for optimal performance.
-
The HDC2022DEPR requires calibration for optimal performance. Refer to the TI application note 'HDC2022DEPR Calibration and Compensation' for a step-by-step calibration procedure. Calibration involves adjusting the device's internal registers to compensate for temperature and humidity variations.
Trust Checks
Community Provided
System Verified
Community Approved
HDC2022DEPR Overview

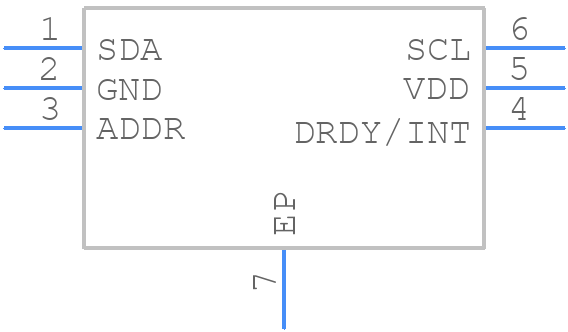

Use the download button to access the HDC2022DEPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC20,
or try a keyword search, such as Temperature Sensors
