HDC3021DEHR - Texas Instruments

Description: Sensores de humedad montados en placa 0.5% RH digital humidity sensor with removable tape cover

Download HDC3021DEHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

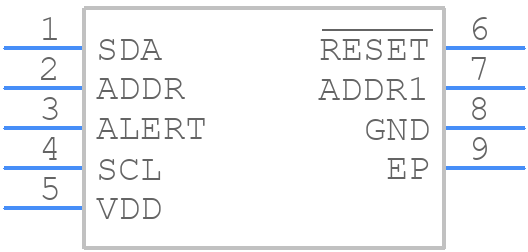

Symbol
HDC3021DEHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC3021DEHR - Texas Instruments PCB footprint - Other - Other - DEH0008A-C01
click to zoom
3D Models
HDC3021DEHR - Texas Instruments - 3D model - Other - DEH0008A-C01
click to zoom

HDC3021DEHR Details

  • Manufacturer Part Number:

    HDC3021DEHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (%):

    0.5%

  • Accuracy-Max (Cel):

    0.1 Cel

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.4-1.4V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HDC3021DEHR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Calibrate the sensor in a controlled environment, and ensure proper airflow around the sensor. Avoid placing the sensor near heat sources or in areas with high air turbulence.
  • The maximum cable length for the I2C interface is approximately 3 meters (10 feet), but this can be extended using I2C bus extenders or repeaters.
  • Use a low-dropout linear regulator (LDO) or a switching regulator with a low quiescent current to minimize power consumption. Ensure the power supply is stable and noise-free.
  • The recommended clock frequency for the I2C interface is 100 kHz, but it can operate up to 400 kHz. Faster clock speeds may require additional capacitive loading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDC3021DEHR Overview

Use the download button to access the HDC3021DEHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC30, or try a keyword search, such as Other Sensors/Transducers
