HDC3022DEJR - Texas Instruments

Description: 0.5% RH digital humidity sensor with permanent IP67 filter

Download HDC3022DEJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

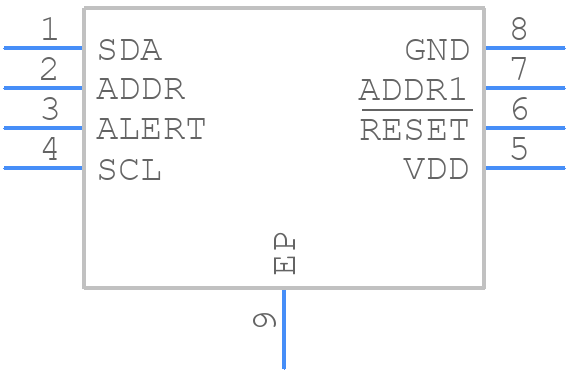

HDC3022DEJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HDC3022DEJR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DEJ0008A-C01
click to zoom
3D Models
HDC3022DEJR - Texas Instruments - 3D model - Small Outline No-lead - DEJ0008A-C01
click to zoom

HDC3022DEJR Details

  • Manufacturer Part Number:

    HDC3022DEJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (%):

    0.5%

  • Accuracy-Max (Cel):

    0.1 Cel

  • Additional Feature:

    IP67

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.4-1.4V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HDC3022DEJR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a ferrite bead or inductor to filter the power supply.
  • Calibrate the sensor in a controlled environment, and ensure the sensor is not exposed to direct sunlight or moisture. Use a low-pass filter to reduce noise and averaging to improve accuracy.
  • The maximum cable length for I2C communication is approximately 3 meters (10 feet) due to signal attenuation and capacitance. Use a repeater or buffer if longer distances are required.
  • Use the EN pin to control the power mode. When EN is low, the device enters low power mode. Ensure the I2C bus is idle before entering low power mode to avoid data corruption.
  • The recommended I2C clock frequency is 100 kHz to 400 kHz. Faster clock speeds may cause data corruption or errors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDC3022DEJR Overview

Use the download button to access the HDC3022DEJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDC30, or try a keyword search, such as Other Sensors/Transducers
