HDEX15SNT footprint, schematic symbol and 3D model by ITW MCMURDO

Symbol

click to zoom

PCB Footprints

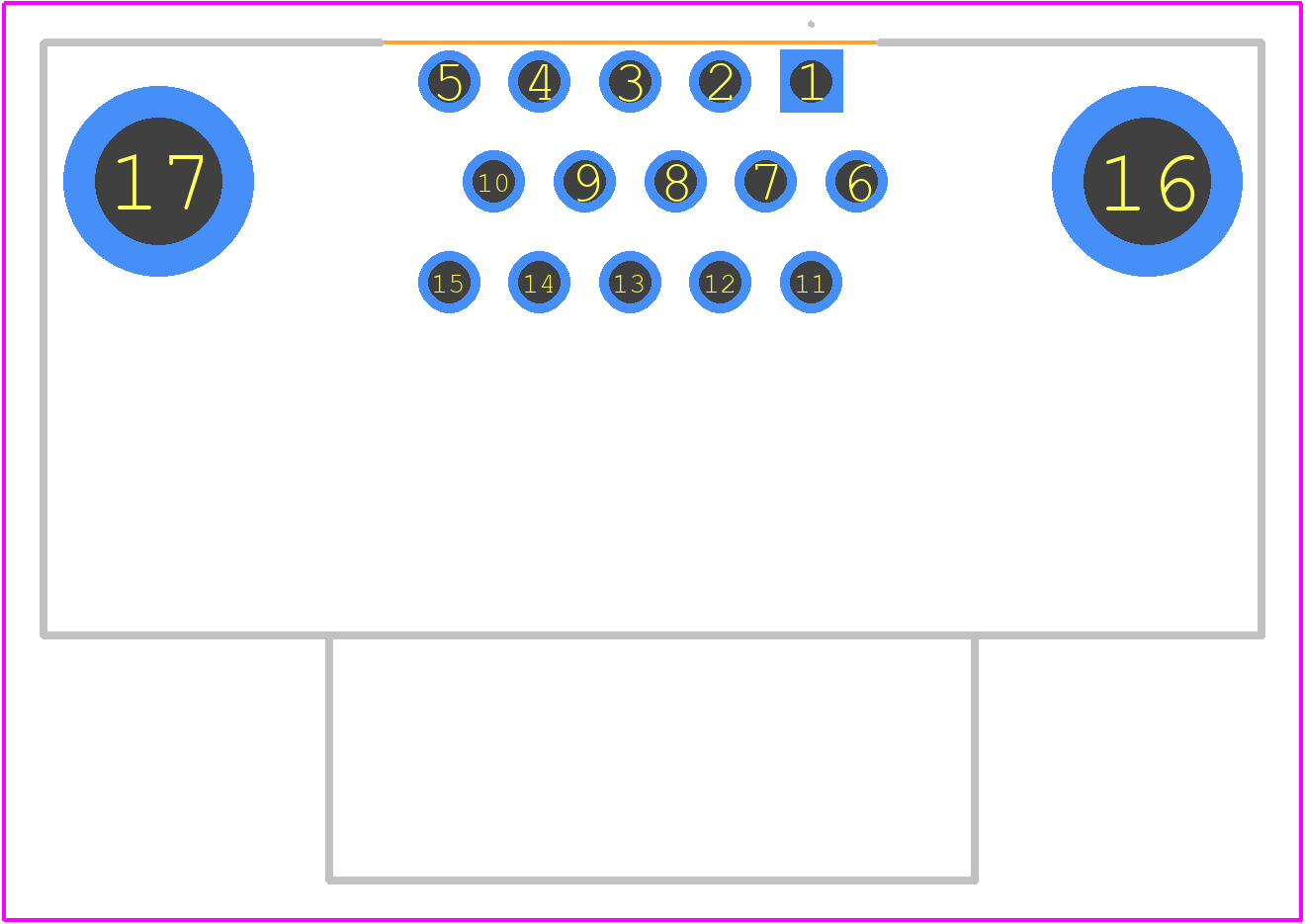

HDEX15SNT - ITW MCMURDO PCB footprint - Other - Other - HDEX15SNT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDEX15SNT
Part Number HDEX15SNT
Manufacturer ITW MCMURDO
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - HDEX15SNT-1
Released Date Feb 15, 2018
Last Modified Date Jul 5, 2024 2:52 AM UTC
Pinout / Pin List Click Here (Member Only)

HDEX15SNT Details

Manufacturer Part Number:
HDEX15SNT
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
ITW McMurdo Connectors
YTEOL:
0
Additional Feature:
EMI/RFI SHIELDED TYPE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
TIN/ZINC
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94V-0

HDEX15SNT Frequently Asked Questions (FAQs)

The recommended torque value for the HDEX15SNT connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the HDEX15SNT connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, defense, and industrial equipment.
The HDEX15SNT connector is a proprietary connector design, but it is compatible with other connectors that meet the same MIL-DTL-83513 specification.
The operating temperature range of the HDEX15SNT connector is -55°C to 125°C (-133°F to 257°F).
Yes, the HDEX15SNT connector is designed to operate in harsh environments, including exposure to moisture, salt spray, and other corrosive substances.

Trust Checks

Community Provided

System Verified

Community Approved

HDEX15SNT Overview

Use the download button to access the HDEX15SNT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HDEX1, or try a keyword search, such as D Type Connectors

Parts related to HDEX15SNT

Showing 0 results
