Part Image

HDLA-1414 - Broadcom Pi

Description: Dot Matrix Display Module 5 x 7 Orange 7-Bit ASCII 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm)

Download HDLA-1414 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HDLA-1414 model

Email notifications will be applied after download.

Send part feedback

Symbol

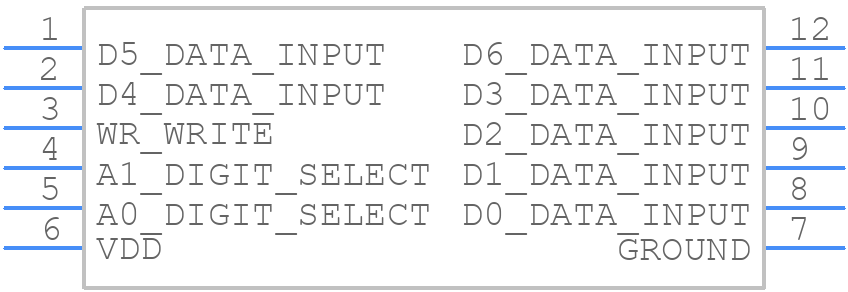

HDLA-1414 - Broadcom Pi - PCB symbol

PCB Footprints

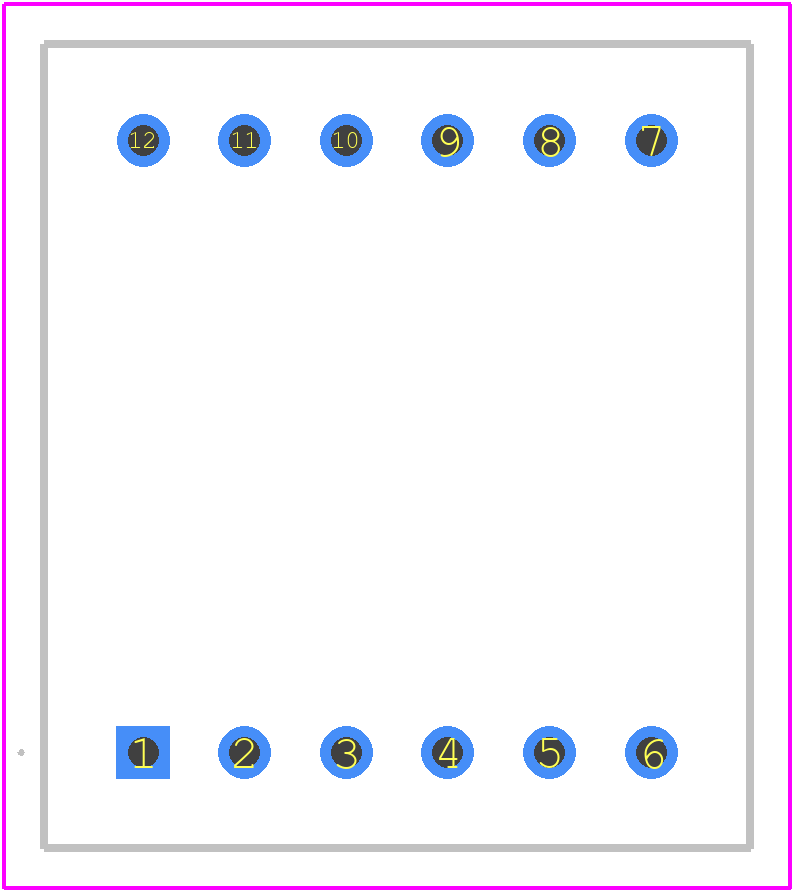

HDLA-1414 - Broadcom Pi PCB footprint - Other - Other - 12-pin DIP

3D Models

HDLA-1414 - Broadcom Pi - 3D model - Other - 12-pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDLA-1414
Part Number HDLA-1414
Manufacturer Broadcom Pi
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - 12-pin DIP
Released Date Feb 1, 2026
Last Modified Date Feb 1, 2026 7:20 AM UTC
Pinout / Pin List Click Here (Member Only)

HDLA-1414 Details

Manufacturer Part Number:
HDLA-1414
Manufacturer:
Raspberry Pi

Trust Checks

Community Provided

System Verified

Community Approved

HDLA-1414 Overview

Use the download button to access the HDLA-1414 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HDLA-, or try a keyword search, such as LED Displays
