HDMI2C1-6C1 - STMicroelectronics

Description: ESD protection and signal booster for HDMI source control stage interface

Download HDMI2C1-6C1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

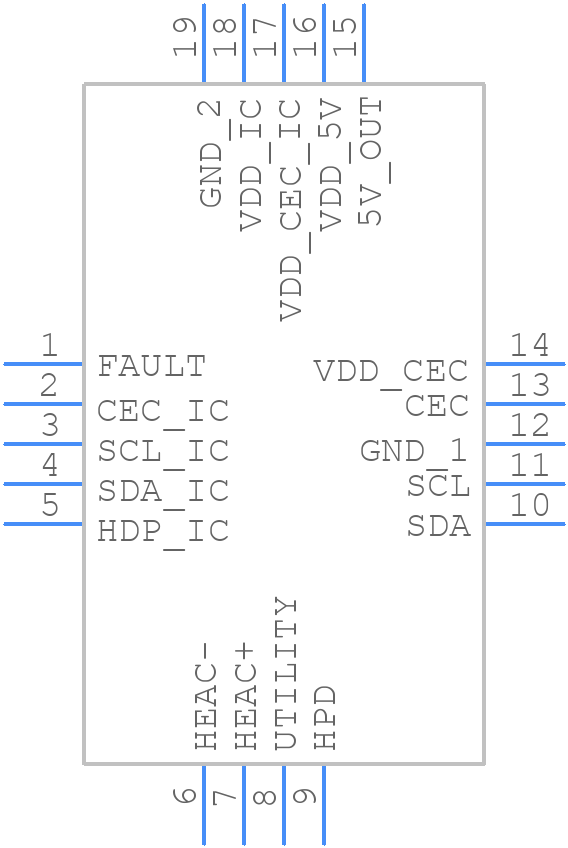

HDMI2C1-6C1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HDMI2C1-6C1 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN package outline
click to zoom
3D Models
HDMI2C1-6C1 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN package outline
click to zoom

HDMI2C1-6C1 Details

  • Manufacturer Part Number:

    HDMI2C1-6C1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-18

  • Manufacturer Package Code:

    QFN-18L

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N18

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

HDMI2C1-6C1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by HDMI2C1-6C1 is 30 meters at 6 Gbps, but it can be extended up to 100 meters using active cables or repeaters.
  • The HDMI2C1-6C1 can be configured for different HDMI versions (1.4, 2.0, or 2.1) through the use of external resistors or by programming the device through the I2C interface.
  • The power consumption of the HDMI2C1-6C1 is typically around 200-300 mW, but it can vary depending on the operating frequency and the specific application.
  • Yes, the HDMI2C1-6C1 is AEC-Q100 qualified and can be used in automotive applications, but it requires additional testing and validation to ensure compliance with automotive standards.
  • Troubleshooting issues with the HDMI2C1-6C1 typically involves checking the device's configuration, signal integrity, and power supply. STMicroelectronics also provides a range of development tools and software to aid in debugging.
