HDSM-283C - Avago Technologies

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads

Download HDSM-283C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

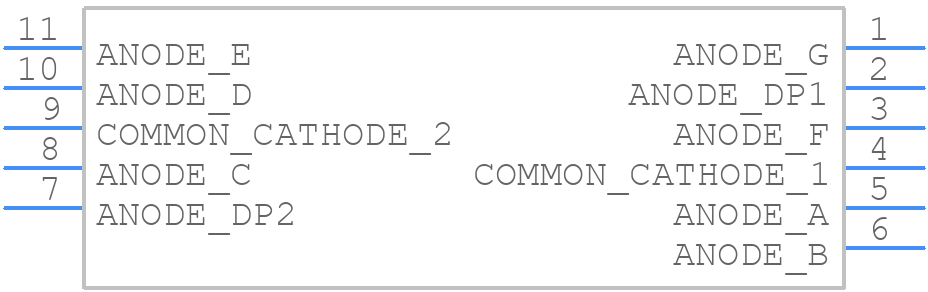

HDSM-283C - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HDSM-283C - Avago Technologies PCB footprint - Other - Other - 12-SMD, No Lead, 11 Pads
click to zoom
3D Models
HDSM-283C - Avago Technologies - 3D model - Other - 12-SMD, No Lead, 11 Pads
click to zoom

HDSM-283C Details

  • Manufacturer Part Number:

    HDSM-283C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-11

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Terminal Finish:

    Matte Tin (Sn)
