HDSM-283H - Avago Technologies

Description: BROADCOM - HDSM-283H - 7 Segment LED Display, Green, 20 mA, 2.1 V, 6 mcd, 1, 7 mm

Download HDSM-283H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

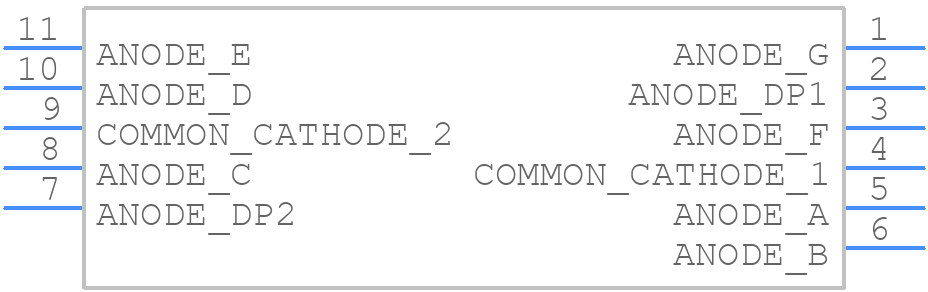

HDSM-283H - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HDSM-283H - Avago Technologies PCB footprint - Other - Other - HDSM-283H-2
click to zoom
3D Models
HDSM-283H - Avago Technologies - 3D model - Other - HDSM-283H-2
click to zoom

HDSM-283H Details

  • Manufacturer Part Number:

    HDSM-283H

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-11

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Terminal Finish:

    Tin (Sn)

HDSM-283H Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HDSM-283H is -40°C to 85°C.
  • To configure the HDSM-283H for optimal performance, refer to the datasheet and application notes for specific register settings, clocking schemes, and power management recommendations.
  • The HDSM-283H supports data transfer rates up to 12 Gbps.
  • Yes, the HDSM-283H is a multi-protocol serializer/deserializer (SerDes) that supports various protocols, including PCIe, SATA, and DisplayPort.
  • To troubleshoot issues with the HDSM-283H, refer to the datasheet and application notes for guidance on debugging tools, error detection, and correction mechanisms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSM-283H Overview

Use the download button to access the HDSM-283H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSM-, or try a keyword search, such as LED Displays
