HDSM-441C - Avago Technologies

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 20mA 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) 10-SMD, No Lead

Download HDSM-441C Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HDSM-441C model

Email notifications will be applied after download.

Send part feedback

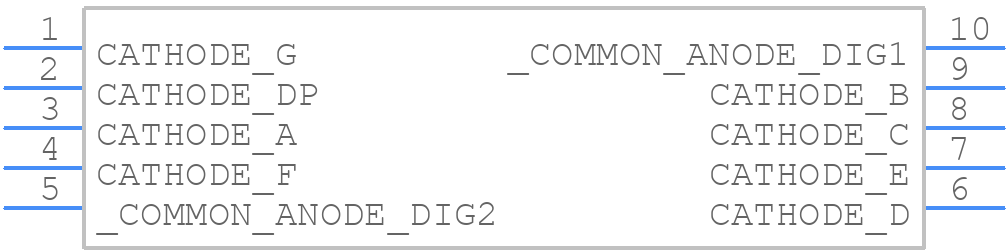

Symbol

HDSM-441C - Avago Technologies - PCB symbol

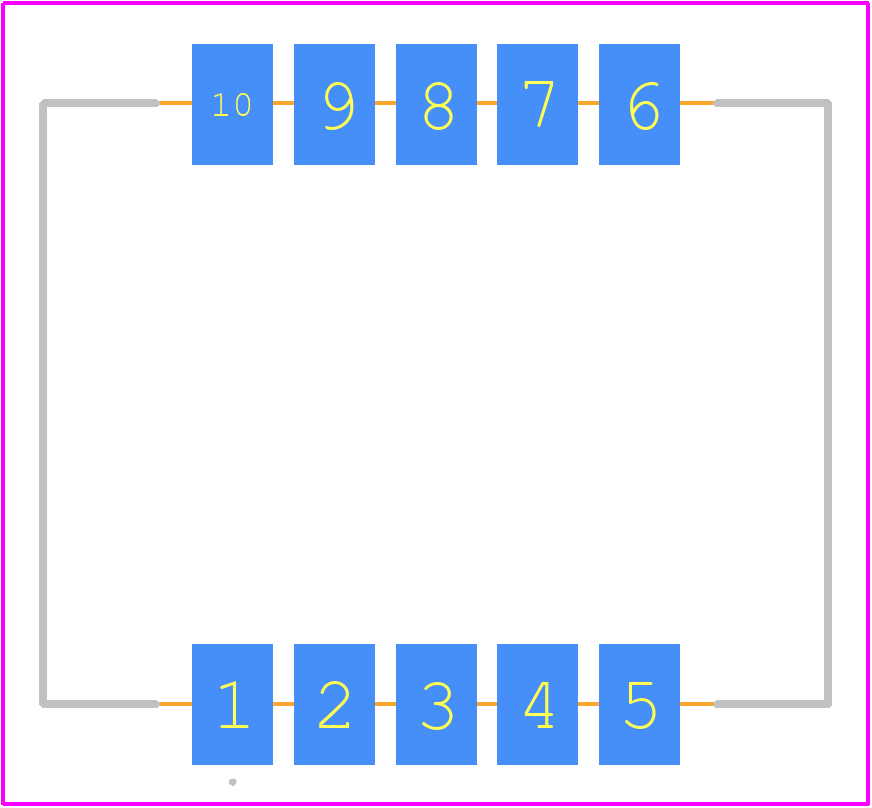

PCB Footprints

HDSM-441C - Avago Technologies PCB footprint - Other - Other - 10-SMD, No Lead

3D Models

HDSM-441C - Avago Technologies - 3D model - Other - 10-SMD, No Lead

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDSM-441C
Part Number HDSM-441C
Manufacturer Avago Technologies
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - 10-SMD, No Lead
Released Date Dec 16, 2025
Last Modified Date Dec 16, 2025 6:13 AM UTC
Pinout / Pin List Click Here (Member Only)

HDSM-441C Details

Manufacturer Part Number:
HDSM-441C
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-10
Reach Compliance Code:
Compliant
HTS Code:
8541.40.20.00
Manufacturer:
Avago Technologies
YTEOL:
6
Color:
RED
Color@Wavelength:
Orange-Red
Configuration:
COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
10 mm
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2 V
JESD-609 Code:
e3
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
632 nm
Terminal Finish:
Tin (Sn)

HDSM-441C Frequently Asked Questions (FAQs)

The recommended operating temperature range for the HDSM-441C is -40°C to 85°C.
Proper thermal management can be achieved by providing a heat sink or thermal pad on the top of the device, and ensuring good airflow around the component.
The HDSM-441C supports data transfer rates up to 12 Gbps.
Yes, the HDSM-441C is designed for high-reliability applications and is qualified to various industry standards, including AEC-Q100 and MIL-STD-883.
The HDSM-441C can be configured using the SPI interface to support different data rates and protocols, such as SATA, PCIe, and others.

Trust Checks

Community Provided

System Verified

Community Approved

HDSM-441C Overview

Use the download button to access the HDSM-441C schematic symbol, PCB footprint, and 3D model.
