HDSM-531W - Avago Technologies

Description: LED Displays & Accessories White InGaN Common Anode 7Seg

Download HDSM-531W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

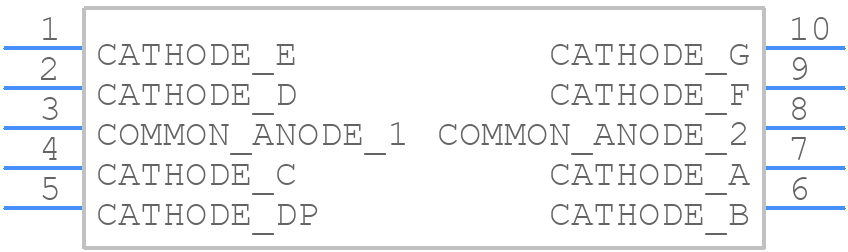

HDSM-531W - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

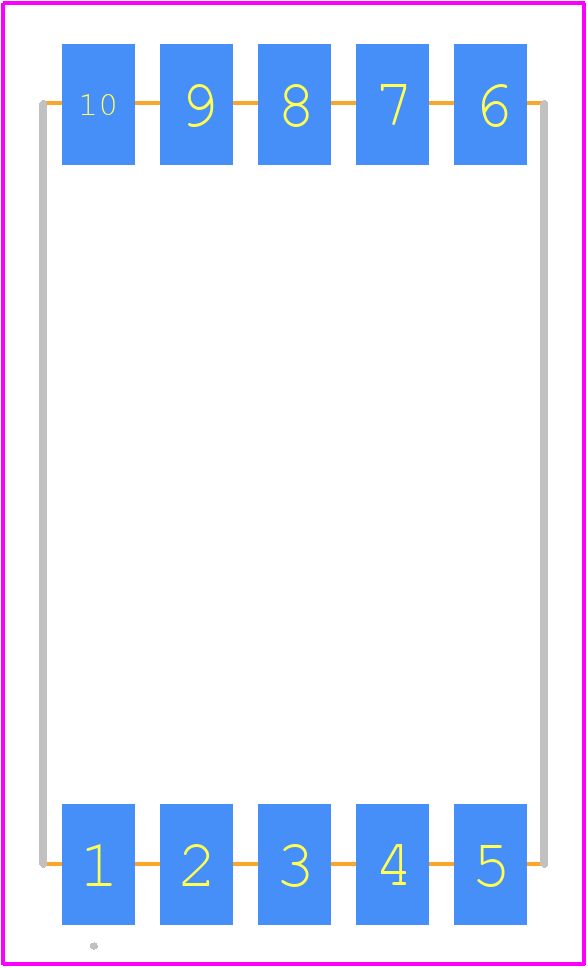

HDSM-531W - Avago Technologies PCB footprint - Other - Other - HDSM-531W-1
click to zoom
3D Models
HDSM-531W - Avago Technologies - 3D model - Other - HDSM-531W-1
click to zoom

HDSM-531W Details

  • Manufacturer Part Number:

    HDSM-531W

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    WHITE

  • Color@Wavelength:

    White

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    3.8 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Terminal Finish:

    Tin (Sn)

HDSM-531W Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the antenna should be placed at least 10mm away from other components.
  • Use a robust error correction mechanism, such as CRC and retransmission, and implement a retry mechanism for failed transmissions. Also, ensure that the device is properly configured and calibrated.
  • The HDSM-531W can operate in temperatures ranging from -40°C to 85°C. However, optimal performance is achieved between 0°C and 70°C.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, and check the device's configuration and calibration. Also, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the HDSM-531W is suitable for battery-powered devices due to its low power consumption. However, ensure that the device is properly powered down during sleep modes to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSM-531W Overview

Use the download button to access the HDSM-531W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSM-, or try a keyword search, such as LED Displays
