HDSM-541B - Avago Technologies

Description: LED Displays & Accessories Blue 462nm 13.5mcd CA DD 7 Segment

Download HDSM-541B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HDSM-541B - Avago Technologies - PCB symbol
click to zoom

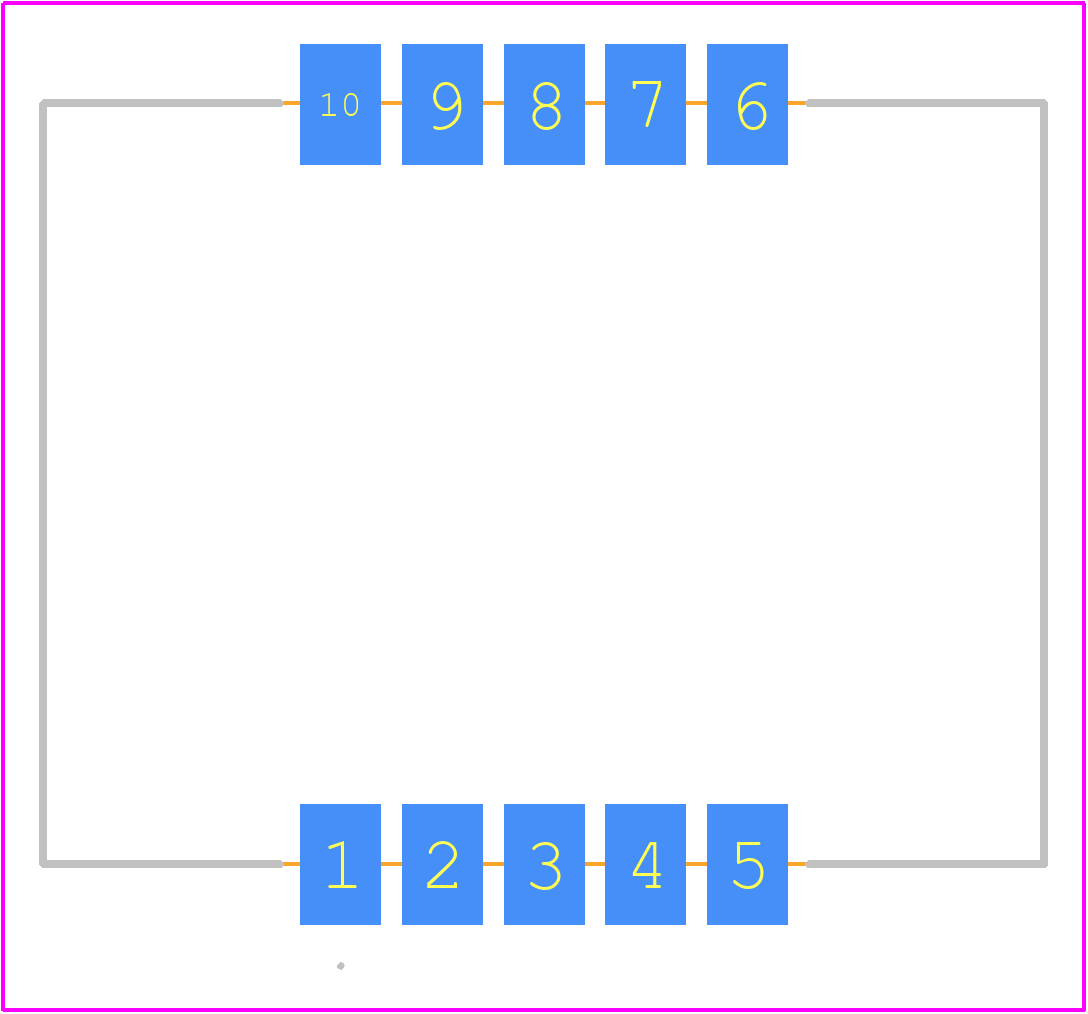

PCB Footprints
HDSM-541B - Avago Technologies PCB footprint - Other - Other - HDSM-541B-2
click to zoom
3D Models
HDSM-541B - Avago Technologies - 3D model - Other - HDSM-541B-2
click to zoom

HDSM-541B Details

  • Manufacturer Part Number:

    HDSM-541B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    BLUE

  • Color@Wavelength:

    Blue

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    4 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    462 nm

  • Terminal Finish:

    Tin (Sn)

HDSM-541B Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HDSM-541B is -40°C to 85°C.
  • Proper thermal management can be achieved by providing a heat sink or thermal pad on the top of the device, and ensuring good airflow around the component.
  • The HDSM-541B supports data transfer rates up to 12.5 Gbps per lane, making it suitable for high-speed applications.
  • Yes, the HDSM-541B is compatible with PCIe applications, and it supports PCIe Gen 1, Gen 2, and Gen 3 speeds.
  • The HDSM-541B can be configured for different data rates using the device's control pins and registers. Refer to the datasheet and application notes for specific configuration details.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSM-541B Overview

Use the download button to access the HDSM-541B schematic symbol, PCB footprint, and 3D model.
