HDSM-541C - Avago Technologies

Description: Displays Segmented Panel 2DIGIT 16LED Red CA 10-Pin SMD T/R - Tape and Reel

Download HDSM-541C Model

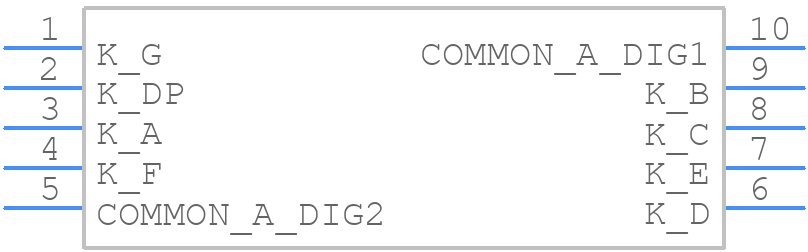

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

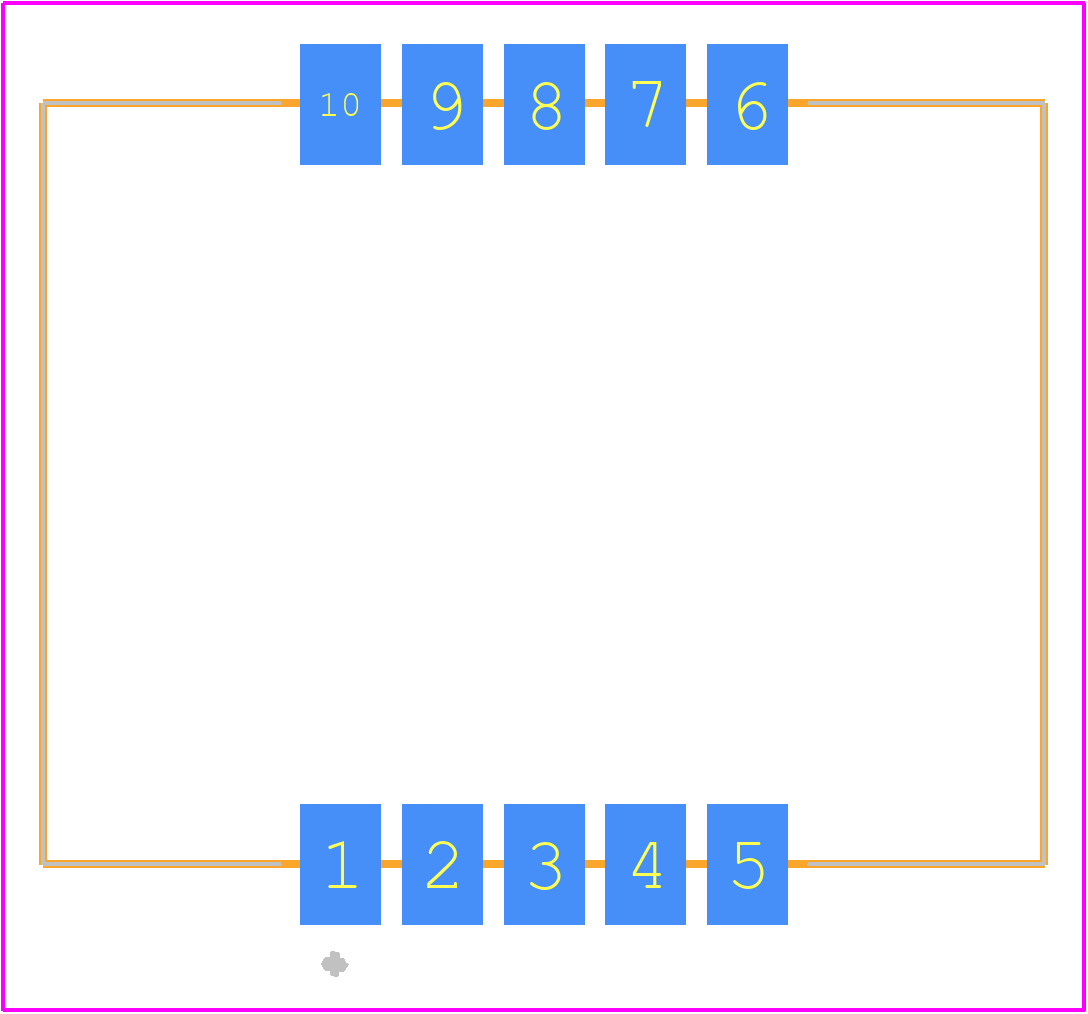

PCB Footprints
HDSM-541C - Avago Technologies PCB footprint - Other - Other - HDSM-541C-1
click to zoom
3D Models
HDSM-541C - Avago Technologies  - 3D model - Other - HDSM-541C-1
click to zoom

HDSM-541C Details

  • Manufacturer Part Number:

    HDSM-541C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    632 nm

  • Terminal Finish:

    Tin (Sn)
