HDSP-0772 - Avago Technologies

Description: Display Modules - LED Character and Numeric Red 7-Segment, Hexadecimal 1 Character Common Anode 10mA 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) 8-DIP (0.600", 15.20mm)

Download HDSP-0772 Model

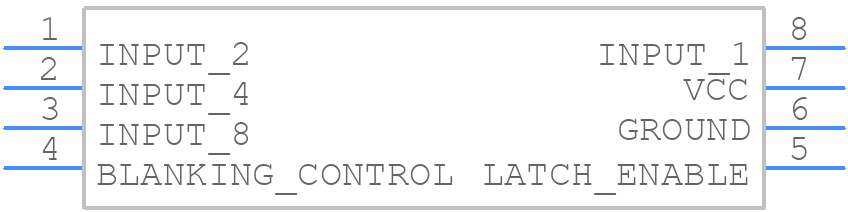

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HDSP-0772 - Avago Technologies PCB footprint - Other - Other - 8-DIP_2025_1
click to zoom
3D Models
HDSP-0772 - Avago Technologies  - 3D model - Other - 8-DIP_2025_1
click to zoom

HDSP-0772 Details

  • Manufacturer Part Number:

    HDSP-0772

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5.25

  • Additional Feature:

    BUILT-IN MEMORY, WITH DECODER/DRIVER, TTL COMPATIBLE

  • Color:

    HIGH EFFICIENCY HIGH BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMPLEX

  • Display Height:

    7.4 mm

  • Forward Current-Max:

    0.01 A

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    4 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    635 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
