HDSP-513E - Avago Technologies

Description: Displays Segmented Module 1DIGIT 8LED Hi-Eff. Red CC 10-Pin DIP Tube

Download HDSP-513E Model

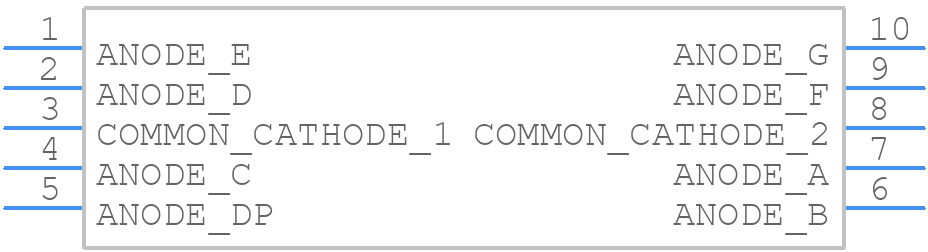

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HDSP-513E - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-513E
click to zoom
3D Models
HDSP-513E - Avago Technologies  - 3D model - Dual-In-Line Sockets - HDSP-513E
click to zoom

HDSP-513E Details

  • Manufacturer Part Number:

    HDSP-513E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-10

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    HIGH EFFICIENCY RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Terminal Finish:

    Tin (Sn)
