HDSP-515A - Avago Technologies

Description: LED Displays & Accessories S4,PCB,0.56S,AlGaAs CC,T/S Black

Download HDSP-515A Model

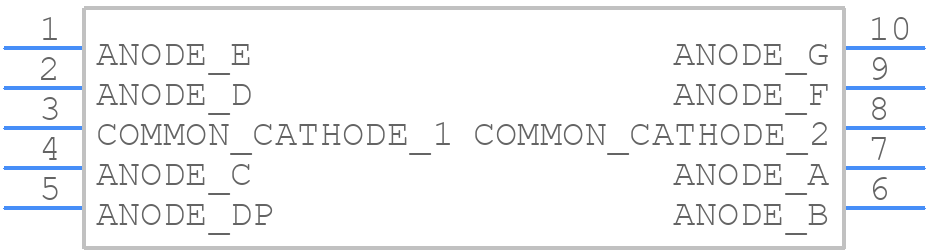

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

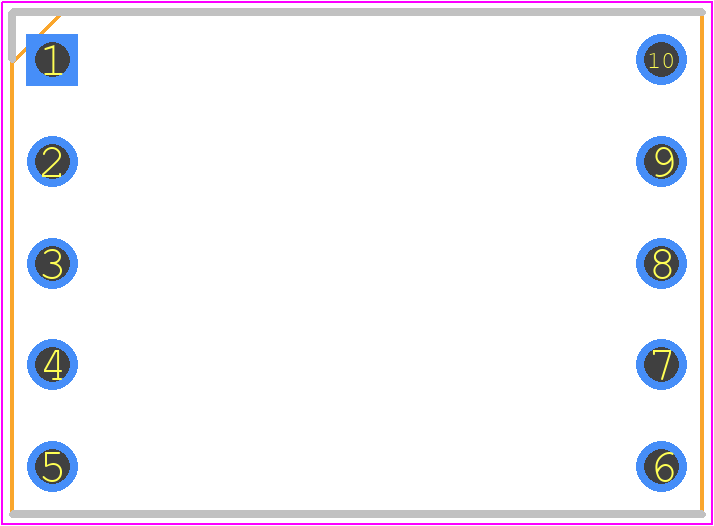

HDSP-515A - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10
click to zoom
3D Models
HDSP-515A - Avago Technologies  - 3D model - Dual-In-Line Sockets - DIP-10
click to zoom

HDSP-515A Details

  • Manufacturer Part Number:

    HDSP-515A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6.52

  • Color@Wavelength:

    Red

  • Configuration:

    Common Cathode

  • Display Height:

    14.22 mm

  • Forward Voltage-Max:

    2 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

  • Terminal Finish:

    Tin (Sn)

HDSP-515A Frequently Asked Questions (FAQs)

  • Broadcom provides a reference design guide that includes recommended PCB layout and thermal management guidelines for the HDSP-515A. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The HDSP-515A has various power-saving features, such as dynamic voltage and frequency scaling. Engineers can optimize power consumption by adjusting these features, selecting the appropriate clock frequency, and using power gating techniques. Broadcom also provides power estimation tools to help with this process.
  • The recommended PLL settings and clocking architecture configuration depend on the specific application and clock frequency requirements. Broadcom provides a clocking architecture guide that includes recommended settings and configuration options for the HDSP-515A.
  • To ensure signal integrity and minimize EMI, engineers should follow proper PCB design practices, such as using differential signaling, adding shielding, and implementing EMI filters. Broadcom also provides guidelines for signal integrity and EMI mitigation in their application notes and reference designs.
  • The HDSP-515A has specific requirements for firmware development and debugging, such as using Broadcom's proprietary development tools and following their recommended firmware architecture. Engineers should also be aware of the device's limitations, such as memory constraints and processing power, when developing firmware.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-515A Overview

Use the download button to access the HDSP-515A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
