HDSP-5321 - Hewlett Packard

Description: 14.2 mm (0.56 inch) Seven Segment Displays

Download HDSP-5321 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

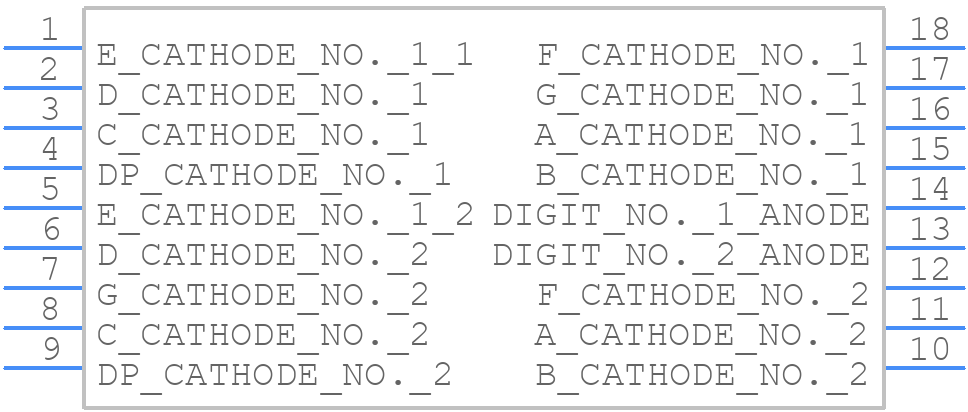

HDSP-5321 - Hewlett Packard - PCB symbol
click to zoom
PCB Footprints

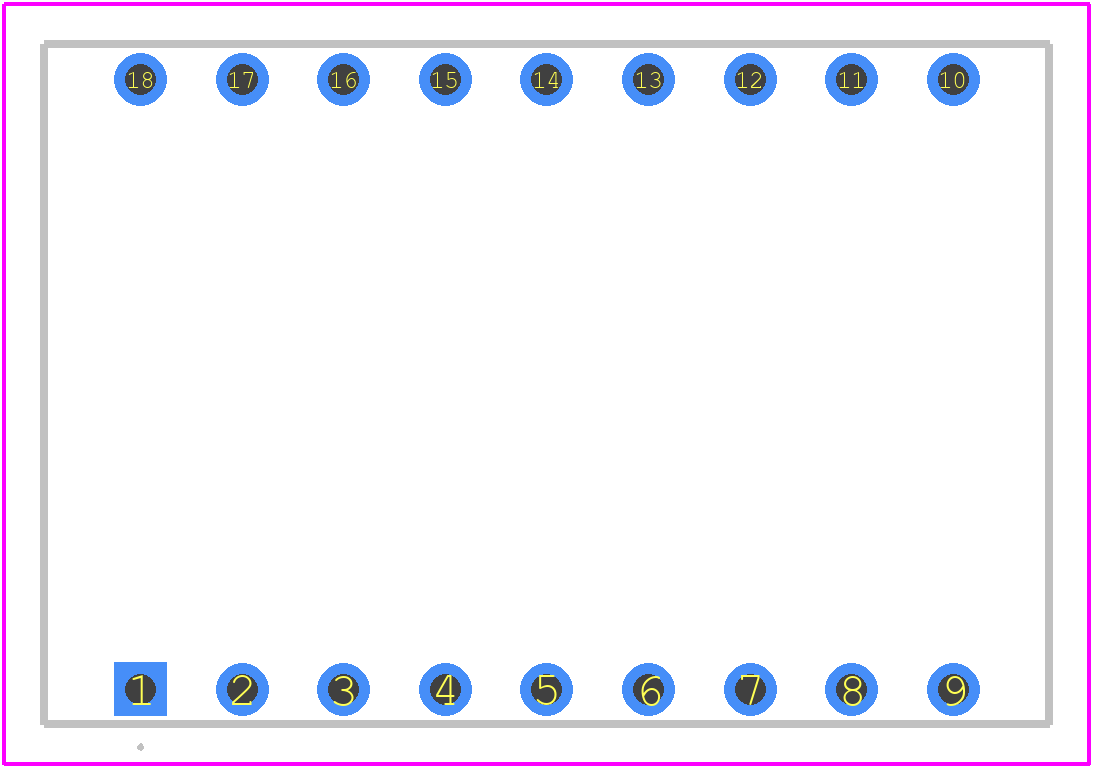

HDSP-5321 - Hewlett Packard PCB footprint - Other - Other - HDSP-5321-1
click to zoom
3D Models
HDSP-5321 - Hewlett Packard - 3D model - Other - HDSP-5321-1
click to zoom

HDSP-5321 Details

  • Manufacturer Part Number:

    HDSP-5321

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-18

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Hewlett Packard Co

  • YTEOL:

    0

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    655 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HDSP-5321 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HDSP-5321 is 0°C to 70°C (32°F to 158°F), with a storage temperature range of -40°C to 85°C (-40°F to 185°F).
  • To properly terminate the differential inputs of the HDSP-5321, use a 100-ohm differential termination resistor (RT) between the positive and negative input pins, and a 50-ohm single-ended termination resistor (RS) from each input pin to ground.
  • The maximum input voltage that the HDSP-5321 can handle is ±5V, with a maximum differential input voltage of 2Vpp.
  • To configure the HDSP-5321 for single-ended operation, connect the negative input pin to ground and apply the input signal to the positive input pin. For differential operation, apply the differential input signal across the positive and negative input pins.
  • The typical power consumption of the HDSP-5321 is 220mW, with a maximum power consumption of 300mW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-5321 Overview

Use the download button to access the HDSP-5321 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
