HDSP-701E - Avago Technologies

Description: LED Displays & Accessories Red 622nm 0.68in 5x7 Dot Matrix

Download HDSP-701E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

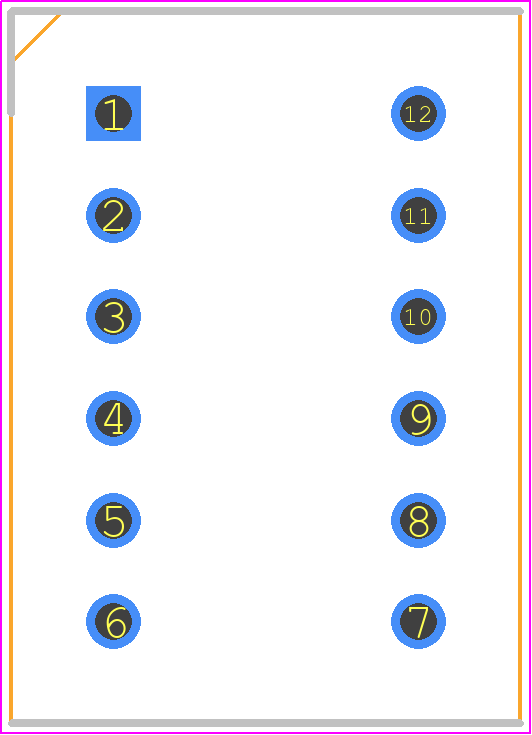

HDSP-701E - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-701E
click to zoom
3D Models
HDSP-701E - Avago Technologies  - 3D model - Dual-In-Line Sockets - HDSP-701E
click to zoom

HDSP-701E Details

  • Manufacturer Part Number:

    HDSP-701E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-12

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6.1

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    17.3 mm

  • Forward Current-Max:

    0.023 A

  • Forward Voltage-Max:

    3.5 V

  • JESD-609 Code:

    e3

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    635 nm

  • Terminal Finish:

    Tin (Sn)

HDSP-701E Frequently Asked Questions (FAQs)

  • Broadcom provides a reference design guide that includes recommended PCB layout and thermal management guidelines for the HDSP-701E. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The HDSP-701E has various power-saving features, such as dynamic voltage and frequency scaling. To optimize power consumption, engineers should consult the datasheet and application notes to understand how to configure these features for their specific use case.
  • The HDSP-701E requires a stable clock source, and Broadcom recommends using a dedicated clock generator or a clock synthesizer. Engineers should consult the datasheet and application notes for specific clocking and synchronization schemes.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB design and layout practices, use shielding and filtering components, and consult the datasheet and application notes for specific guidelines on reducing EMI and improving EMC.
  • Broadcom provides reliability data, such as MTBF (mean time between failures) and FIT (failure in time) rates, for the HDSP-701E. The company also follows rigorous testing and quality control procedures to ensure the device's reliability and quality.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-701E Overview

Use the download button to access the HDSP-701E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
