HDSP-7403 - Avago Technologies

Description: Display, LED, 7-segment, 7.62mm, 0.3", No.char1, yellow, cathode

Download HDSP-7403 Model

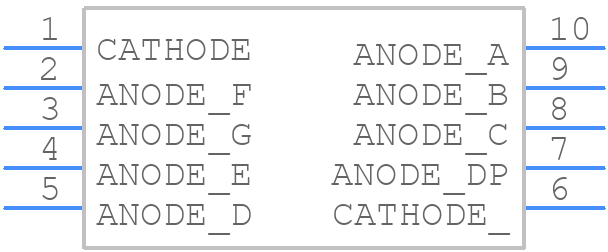

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

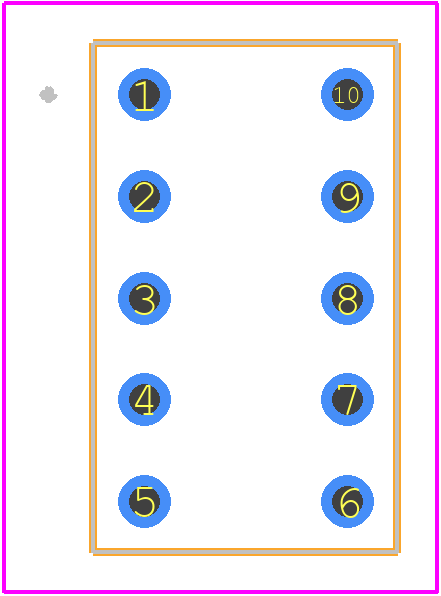

HDSP-7403 - Avago Technologies PCB footprint - Other - Other - HDSP-7403-2
click to zoom
3D Models
HDSP-7403 - Avago Technologies  - 3D model - Other - HDSP-7403-2
click to zoom

HDSP-7403 Details

  • Manufacturer Part Number:

    HDSP-7403

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7.6 mm

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.5 V

  • JESD-609 Code:

    e1

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    583 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

HDSP-7403 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a heat sink with a thermal resistance of less than 10°C/W to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking the airflow around the device.
  • Power up the VCC supply first, followed by the VDD supply. Ensure that the VCC supply is stable before applying the VDD supply. Use a power-up sequence controller or a voltage supervisor to ensure a controlled power-up sequence.
  • Use a logic analyzer or an oscilloscope to capture the I2C signals. Check for correct signal levels, clock frequency, and data transmission. Verify that the I2C address is correct and that there are no bus conflicts.
  • The maximum cable length supported is 30 meters at 4K resolution and 10 meters at 8K resolution. Use a high-quality HDMI cable with a bandwidth of at least 18 Gbps to ensure reliable transmission.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDSP-7403 Overview

Use the download button to access the HDSP-7403 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays

Parts related to HDSP-7403

Showing 0 results

HDSP-7403 Alternates

Showing results

Image Part Number Model
Part Image HDSP-7403 Agilent Technologies Inc

7 Seg Numeric LED Display, 1-Character, Yellow, 7.6mm

Part Image HDSP-7403 Hewlett Packard Co

7 Seg Numeric LED Display, 1-Character, Yellow, 7.6mm
